Запчасти Case TV380 (55.404.040[01]) - FRONT LIGHT ASSY (55) - ELECTRICAL SYSTEMS

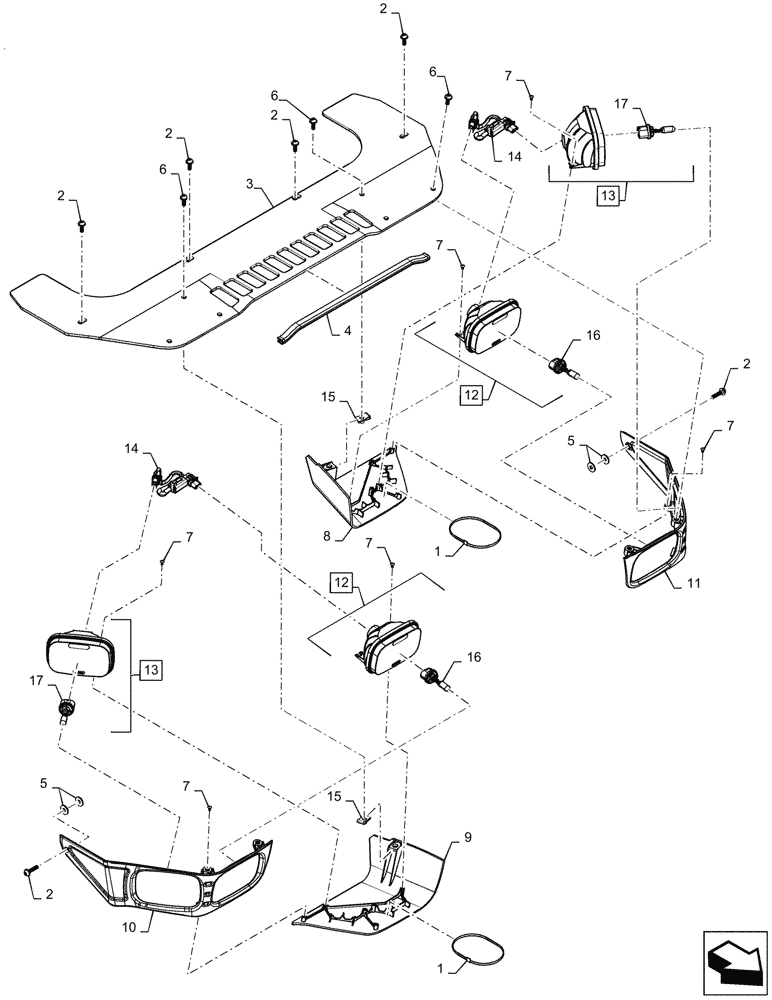

Схема запчастей Case TV380 - (55.404.040[01]) - FRONT LIGHT ASSY (55) - ELECTRICAL SYSTEMS
15
2
11
6
12
16
2
10
13
7
8
2
6
13
17
17
5
1
7
7
14
3
12
2
2
16
7
2
1
4
6
15
5
7
14
7
9

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

2

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

6шт.

3

84338448

BRACKET, SUPPORTING

913.5mm L

1шт.

4

84353803

TRIM,30.48m Bulk

Cut to Length, 376mm L

1шт.

5

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

6

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

6шт.

7

48033458

SCREW,HWH, #8-19 x .375”

12шт.

8

47550915

HOUSING

LH, Bottom Lamp Mounting

1шт.

9

47550912

HOUSING

RH, Bottom Lamp Mounting

1шт.

10

47599294

HOUSING

RH, Face Lamp Mounting

1шт.

11

47599297

HOUSING

LH, Face Lamp Mounting

1шт.

12

84306268

WORK LAMP,12V, 50W, Clear

Incl 16

2шт.

13

84306271

WORK LAMP,12V, 37.5W, Clear

Incl 17

2шт.

14

84306340

WIRE HARNESS

Front Lamp Jumper

2шт.

15

86625073

SPRING NUT,M6 x 1

2шт.

16

44995162

BULB,T-3 1/4, 12.8V, 50W

Halogen

2шт.

17

47532577

BULB,T-3 1/4, 12.8V, 38W

Halogen

2шт.

Выбрано товаров: 17
