Запчасти Case TV380 (29.218.AO[13]) - HYDROSTATIC PUMP, 45CC, E-H CONTROL (29) - HYDROSTATIC DRIVE

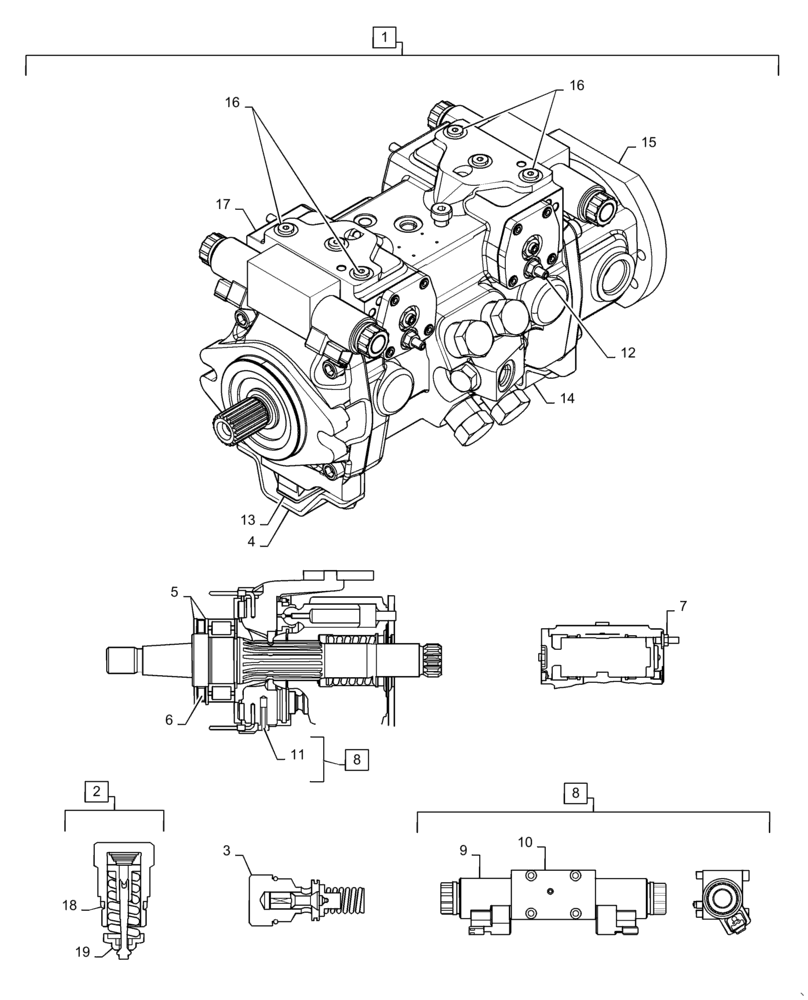

Схема запчастей Case TV380 - (29.218.AO[13]) - HYDROSTATIC PUMP, 45CC, E-H CONTROL (29) - HYDROSTATIC DRIVE
2
17
4
14
16
10
12
18
1
3
11
19
7
13
5
16
6
15
8
8
9

Артикул

Название

Примечание

Количество

1

47374657

HYDROSTATIC PUMP,45 CC

Tandem, E - H Controls, Incl 2 - 19, Years: -24-AUG-15

1шт.

1

47374657R

REMAN-HYDROSTAT PUMP

Tandem, E - H Controls, Incl 2 - 19

1шт.

1

47374657C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

47775932

PUMP

Tandem, E - H Controls, Incl 2 - 19, Start Year: 25-AUG-15

1шт.

1

47374656

HYDROSTATIC PUMP,45 CC

Tandem, E - H Controls, Incl 2 - 19, Years: -24-AUG-15

1шт.

1

47374656R

REMAN-HYDROSTAT PUMP

Tandem, E - H Controls

1шт.

1

47374656C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

47775931

PUMP

Tandem, E - H Controls, Incl 2 - 19, Start Year: 25-AUG-15

1шт.

1

47374690

HYDROSTATIC PUMP,45 CC

Tandem, E - H Controls, EHF, Incl 2 - 19

1шт.

1

47374660

HYDROSTATIC PUMP,46 CC

Tandem, E - H Controls, EHF, Incl 2 - 19

1шт.

2

87614031

VALVE PRESSURE RELIE

High, 360 Bar, Incl 18 - 19

4шт.

3

84540764

VALVE PRESSURE RELIE

Charge, 25 Bar, 40 Liters Per Minute

1шт.

4

84356794

SENSOR

Angle

2шт.

5

84389755

SEAL

V - Ring

2шт.

6

84389757

SEAL

Shaft

1шт.

7

84389758

NUT

Seal Lock

4шт.

8

84389759

MODULE

Control, Complete, Incl 9 - 11

1шт.

9

84389760

COIL

Proportional Solenoid

4шт.

10

84389762

MODULE

Control, W/O Coils

1шт.

11

84389763

GASKET

Mounting, Control Module

1шт.

12

87627399

CAP

Service

4шт.

13

84389781

SHIELD

Front Angle Sensor

1шт.

14

84389782

SHIELD

Rear Angle Sensor

1шт.

15

87553617

O-RING

1шт.

16

84569334

ORIFICE,M6, 1mm ID

4шт.

16

84570565

ORIFICE,M6 x 1, 1.2mm ID

4шт.

17

87688409

TEMPERATURE SENDER,M10 x 1.0

Hydraulic

1шт.

18

87597284

O-RING

Main Pressure Relief Valve

1шт.

19

87597285

RING

Back Up

1шт.

Выбрано товаров: 29
