Запчасти Case TV380 (29.204.AB[06]) - HYDROSTATIC PUMP, SUPPLY LINES, EHF (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

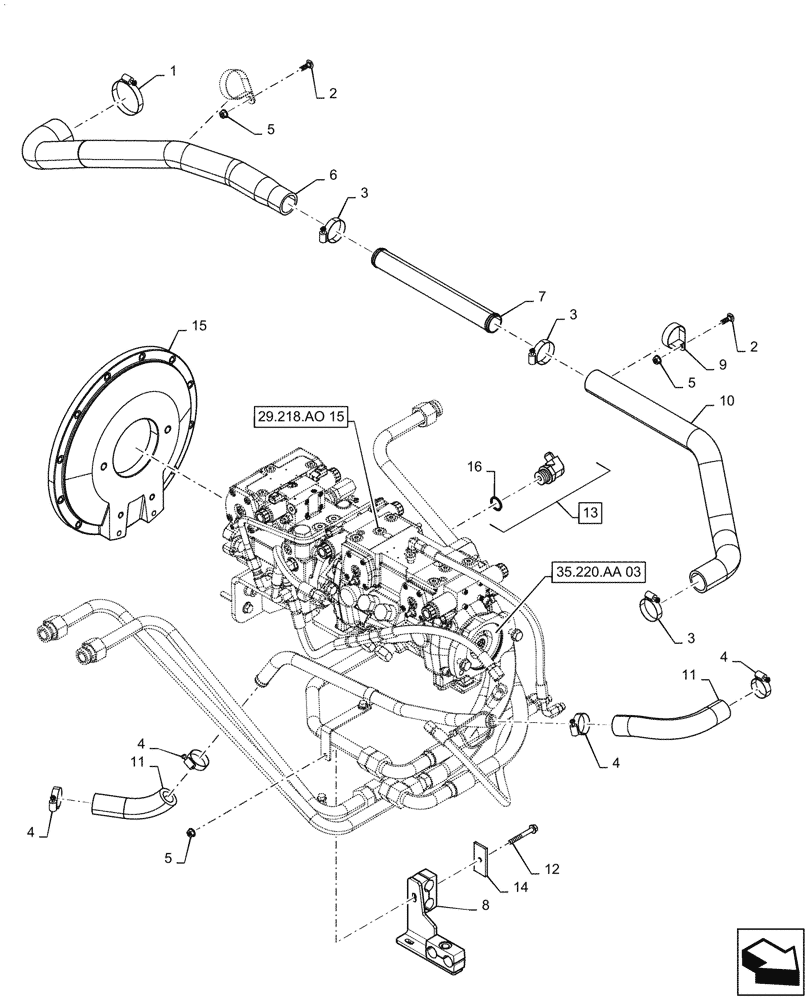

Схема запчастей Case TV380 - (29.204.AB[06]) - HYDROSTATIC PUMP, SUPPLY LINES, EHF (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE
35.220.aa 03
11
5
16
4
6
15
2
4
4
1
8
11
3
3
13
4
7
5
12
2
3
10
14
9
5
29.218.ao 15

Артикул

Название

Примечание

Количество

1

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

2

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

3

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

3шт.

4

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

47648672

HOSE,63.5mm ID x 714mm L

Gear Pump Suction

1шт.

7

47707350

TUBE,38.10mm OD x 330mm L

Straight

1шт.

8

47892805

BRACKET

Clamp Mounting

1шт.

9

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

10

84349297

HOSE,38mm ID x 684mm L

Gear Pump Suction

1шт.

11

84374131

HYDRAULIC HOSE,25.4mm ID x 275mm L, SAE 100R1

Charge Supply

2шт.

12

87017615

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

13

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 16

1шт.

14

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

1шт.

15

47659211

COVER

Flywheel

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 16
