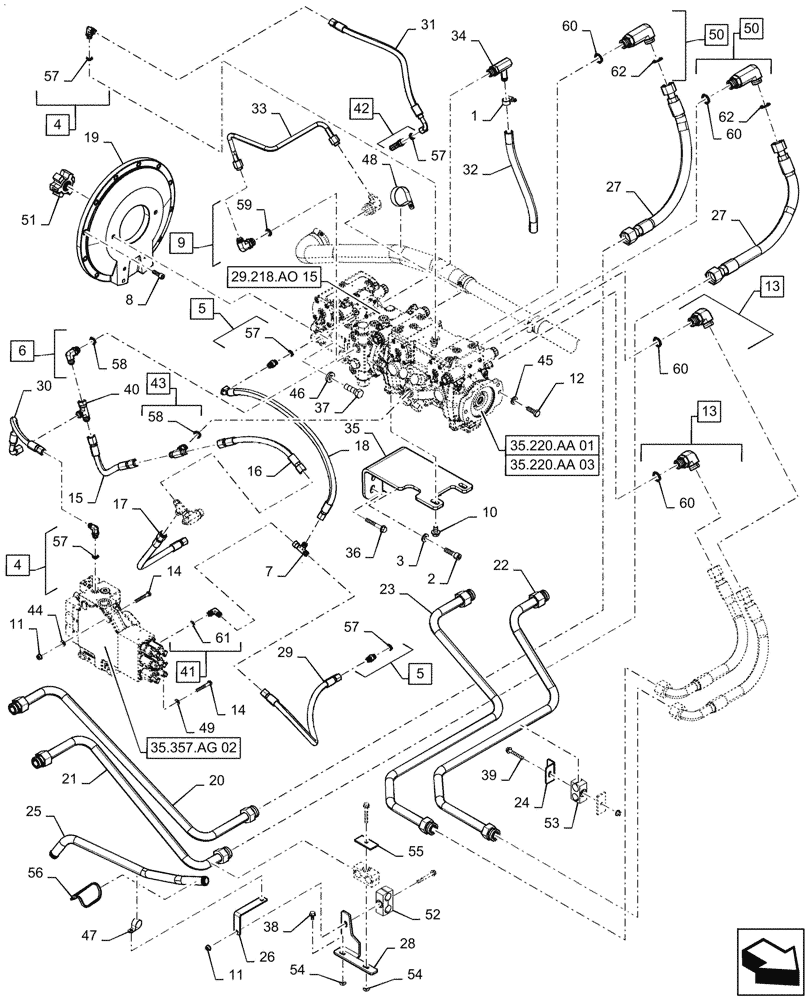

Запчасти Case TV380 (29.204.AB[05]) - HYDROSTATIC PUMP, DRIVE LINES, EHF (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

2шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 57

3шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 57

2шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 58

1шт.

7

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

10шт.

9

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 59

1шт.

10

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

12

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

13

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 60

2шт.

14

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

15

47645579

TUBE,10mm ID x 313mm L

P1 to P2 Charge

1шт.

16

47645585

HOSE,10mm ID x 330mm L

Charge Supply A2O

1шт.

17

47645586

HOSE,10mm ID x 527mm L

Charge Supply Brake

1шт.

18

47647454

HOSE,10mm ID x 733mm L

Pump Interlock

1шт.

19

47659211

COVER

Flywheel

1шт.

20

47886077

HYD TUBE

RH CTL Drive Motor

1шт.

21

47886097

HYD TUBE

RH CTL Drive Motor

1шт.

22

47886112

HYD TUBE

LH CTL Drive Motor

1шт.

23

47886116

HYD TUBE

LH CTL Drive Motor

1шт.

24

47895194

BRACKET

Clamp Mounting

1шт.

25

47895198

HYD TUBE

Charge Supply

1шт.

26

47899210

BRACKET

Clamp Mounting

1шт.

27

47915980

HOSE

Loop

2шт.

28

47915889

ANGLE

Loop

2шт.

29

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

Control to Brake

1шт.

30

84356615

HYDRAULIC HOSE,9.53mm ID x 402mm L, SAE 100R17

Charge Supply LDRValve

1шт.

31

84356618

HYDRAULIC HOSE,9.53mm ID x 592mm L, SAE 100R17

NOR Pump to Brake

1шт.

32

84356619

HYDRAULIC HOSE,15.88mm ID x 335mm L

EHF Drain

1шт.

33

84387079

HYD TUBE,12.7mm OD

Pump Drain

1шт.

34

84473278

FITTING,7/8"-14 ORB x 15.88mm OD Bead x M10 x 1.0

1шт.

35

84549585

MOUNTING PLATE

Pump Support

1шт.

36

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

37

86508732

BOLT,5/8"-11 x 2.391" Cl 8

2шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

39

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

40

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

41

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 61

1шт.

42

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 57, Years: -02-OCT-16

1шт.

42

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

, Start Year: 03-OCT-16

1шт.

43

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 58

1шт.

44

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

45

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

46

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

2шт.

47

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

48

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

49

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

50

87661865

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 60, 62

2шт.

51

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

52

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

53

225529A1

CLAMP,Dual, 25.4mm ID

1шт.

54

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

55

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

56

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

57

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

58

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

59

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

60

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

61

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

62

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
