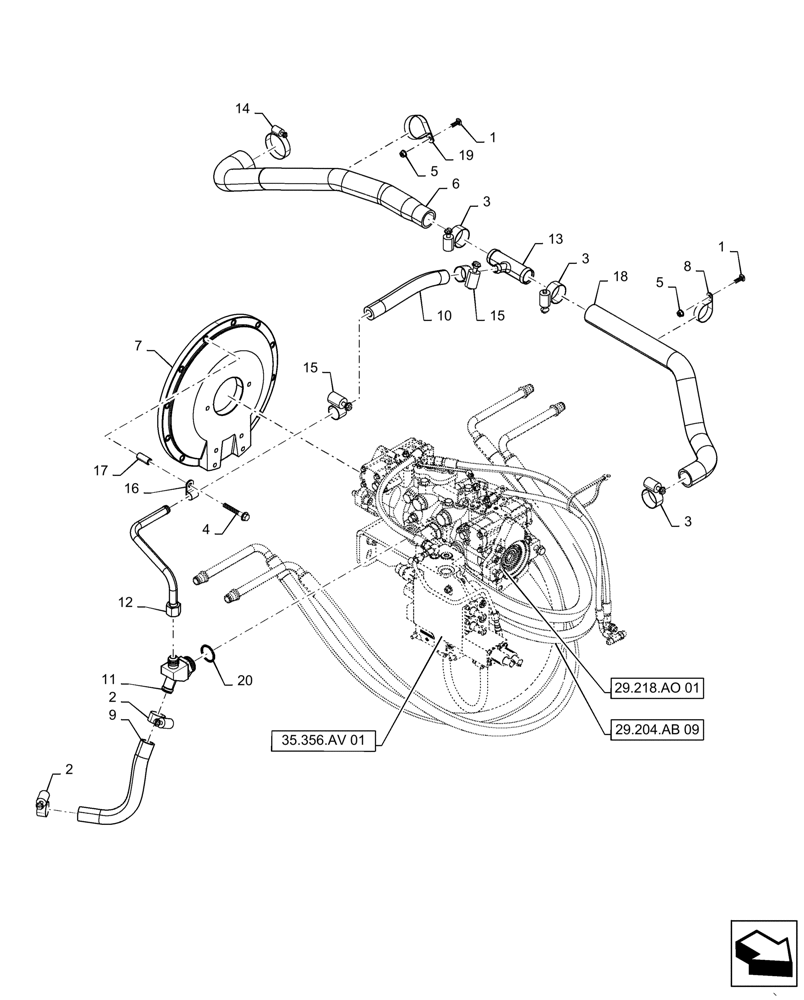

Запчасти Case TV380 (29.204.AB[02]) - HYDROSTATIC PUMP, SUPPLY LINES, MECHANICAL CONTROLS (29) - HYDROSTATIC DRIVE

1

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

2

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

3

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

3шт.

4

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

47648672

HOSE,63.5mm ID x 714mm L

Gear Pump Suction

1шт.

7

47659227

COVER

Flywheel, W/O EHF

1шт.

7

47659211

COVER

Flywheel, W/ EHF

1шт.

8

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

9

47645588

HOSE,25mm ID x 340mm L, SAE 100R4

Charge Supply

1шт.

10

84344942

HOSE,19.05mm OD x 280mm L

Tandem Supply

1шт.

11

84420269

FITTING,1-5/8" - 12 ORB x 1-1/16" - 12 JIC x -16 Hose Barb

Incl 20

1шт.

12

47645567

TUBE

Tandem Supply

1шт.

13

84511713

TEE,-24 Bead x -24 Bead x -12 Bead

1шт.

14

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

1шт.

15

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

16

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

17

84265307

TUBE SPACER,10.3mm ID x 15.9mm OD x 36.5mm L

1шт.

18

84349297

HOSE,38mm ID x 684mm L

Gear Pump Suction

1шт.

19

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

20

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.
