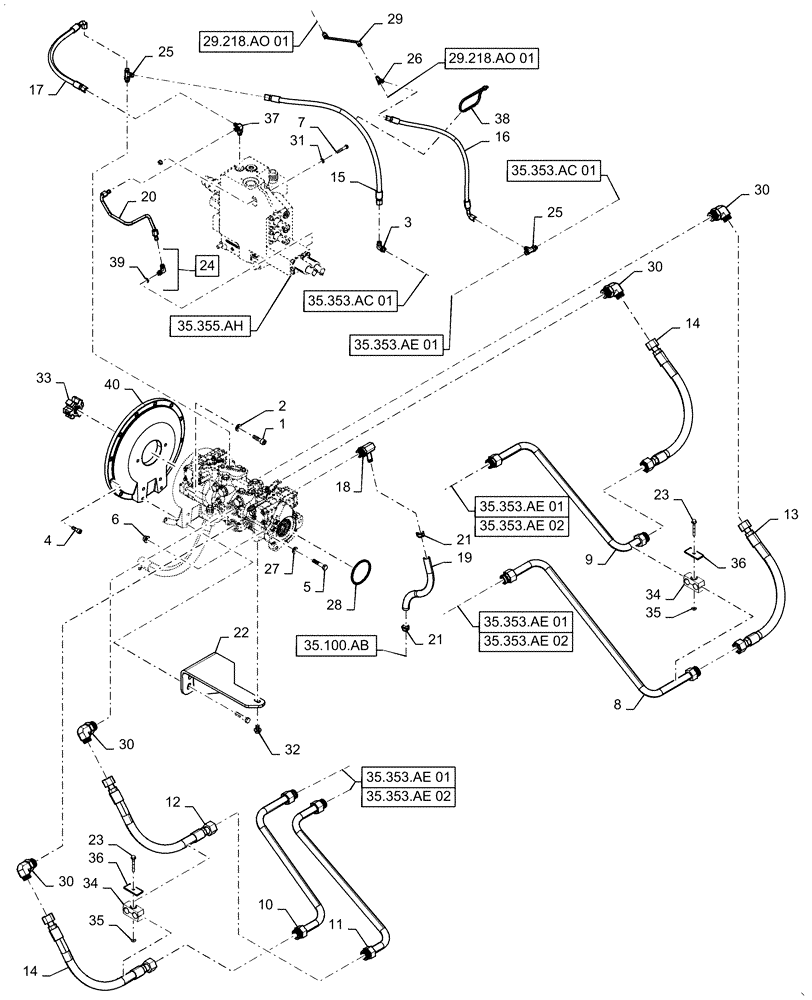

Запчасти Case TV380 (29.204.AB[01]) - HYDROSTATIC PUMP, DRIVE LINES, MECHANICAL CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

1

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

4шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

4

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

5

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

6

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

7

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

8

47886077

HYD TUBE

RH, Drive Motor

1шт.

9

47886097

HYD TUBE

RH, Drive Motor

1шт.

10

47886101

HYD TUBE

LH, Drive Motor

1шт.

11

47886108

HYD TUBE

LH, Drive Motor

1шт.

12

47915981

HOSE,19mm ID x 475mm L, SAE100R13

Loop

1шт.

13

47915982

HOSE,19mm ID x 670mm L, SAE100R13

Loop

1шт.

14

47915985

HOSE,19mm ID x 630mm L, SAE100R13

Loop

2шт.

15

84257174

HOSE ASSY.,9.53mm ID x 765mm L, SAE 100R17

1шт.

16

84257175

HOSE ASSY.,6.35mm ID x 650mm L, SAE 100R17

1шт.

17

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

1шт.

18

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

1шт.

19

84356619

HYDRAULIC HOSE,15.88mm ID x 335mm L

1шт.

20

84373389

RIGID TUBE,9.53mm OD

1шт.

21

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

22

84560744

MOUNT

Pump Support, Gray

1шт.

23

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

24

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 40

1шт.

25

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

, Years: -02-OCT-16

2шт.

25

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

, Start Year: 03-OCT-16

1шт.

25

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

, Start Year: 03-OCT-16

1шт.

26

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

27

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

28

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

29

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

30

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

4шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

32

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

33

87711337

COUPLING,19T, 1-1/8" ID

1шт.

34

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

35

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

36

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

37

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

39

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

40

47659227

COVER

Flywheel, W/O EHF

1шт.

40

47659211

COVER

Flywheel, W/ EHF

1шт.
