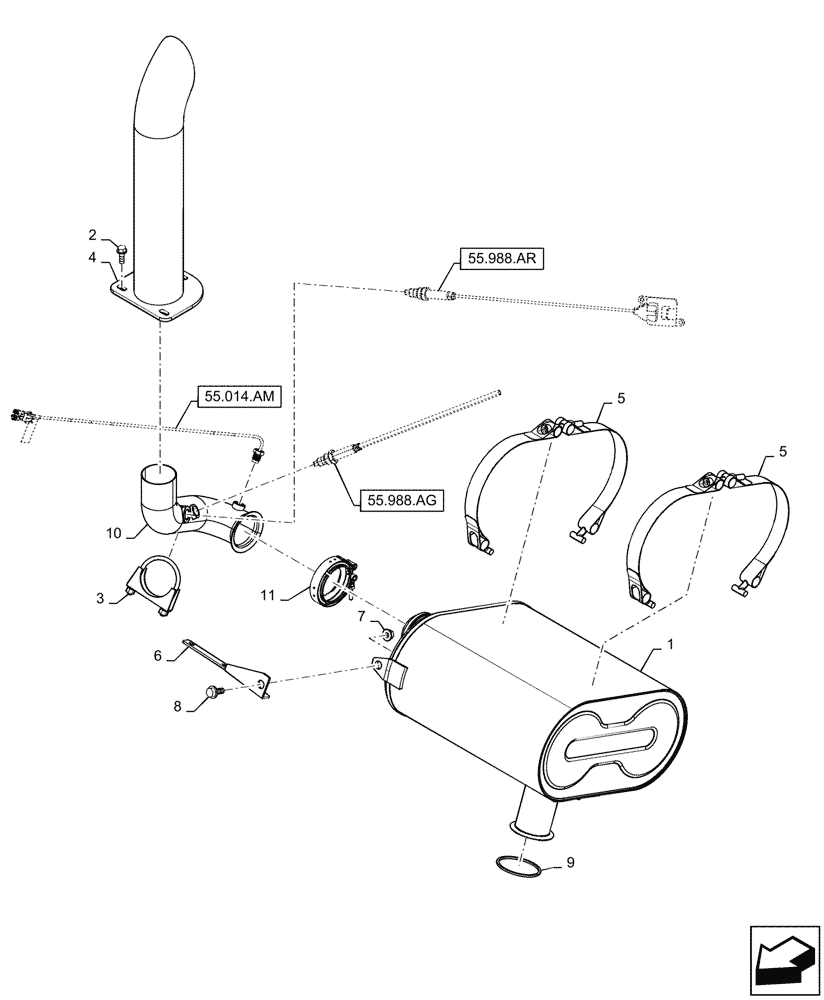

Запчасти Case TV380 (10.500.AO) - SCR MUFFLER (10) - ENGINE

1

47648076

MUFFLER

SCR Assy

1шт.

2

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

3

47541188

CLAMP,68mm ID, Muffler

1шт.

4

47579149

EXTENSION

Tail Pipe

1шт.

5

47581149

STRAP

Muffler Hold Down

2шт.

6

47660292

BRACKET

Tail Pipe Support

1шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

8

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

47489270

GASKET,58.9mm ID

80.3mm OD, SCR to Exhaust Tube

1шт.

10

47520958

TUBE

Tail Pipe Assy

1шт.

11

47640901

PIPE CLAMP,84.5mm OD, 1/4-28”

2.5"

1шт.
