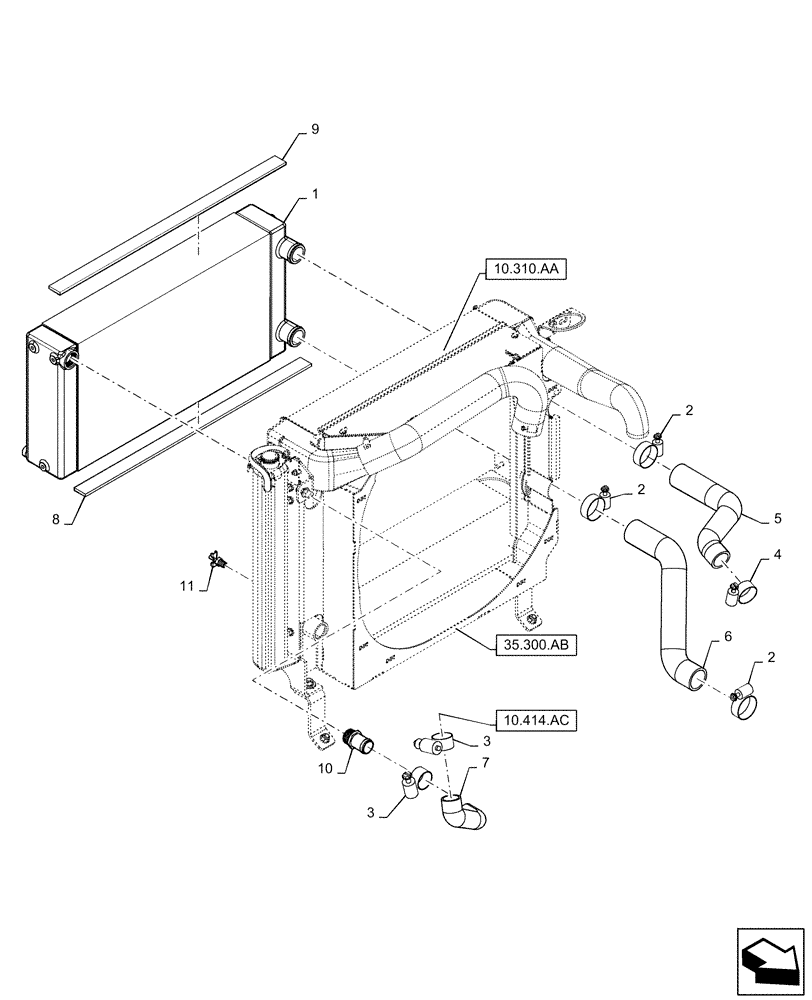

Запчасти Case TV380 (10.400.BE[01]) - RADIATOR & COOLER (10) - ENGINE

1

47632122

RADIATOR

Standard Fin Density

1шт.

1

47702958

RADIATOR

Low Fin Density

1шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

Upper, Radiator Side and Lower, Engine Side

3шт.

3

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

Coolant Filler

2шт.

4

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

Upper, Engine Side

1шт.

5

47705996

RADIATOR HOSE,45mm ID, SAE 20R4

Upper

1шт.

6

47632147

RADIATOR HOSE,45mm ID, SAE 20R4

Lower

1шт.

7

47708639

HOSE

Coolant Filler

1шт.

8

47717128

INSULATION,706.5mm L x 35mm W x 7mm Thk

706.5mm L, Oil Cooler

1шт.

9

47717129

INSULATION,706.5mm L x 35mm W x 7mm Thk

706.5mm L, Aftercooler

1шт.

10

84379534

FITTING,1-5/16" - 12 ORB x 1-1/4" Hose, Beaded

Coolant Filler Hose

1шт.

11

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Radiator

1шт.
