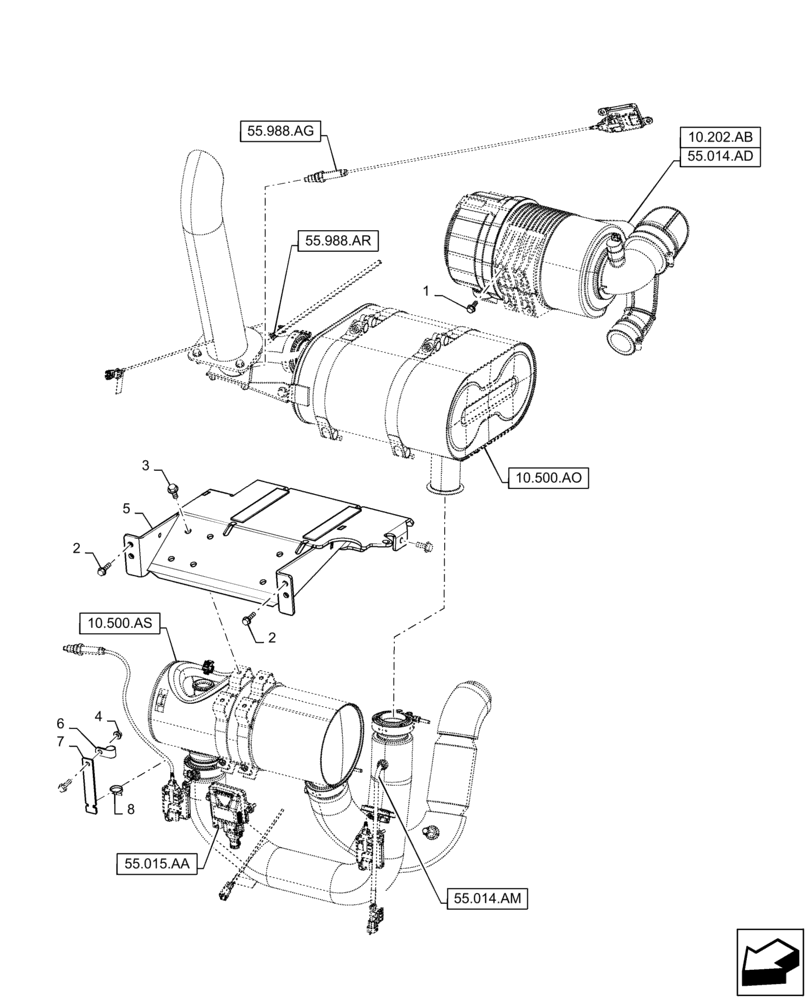

Запчасти Case TV380 (10.254.AD) - INTAKE & EXHAUST, MOUNTING (10) - ENGINE

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

2

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

7шт.

3

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

5шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

5

47726091

BRACKET

DOC/SCR Muffler Mount

1шт.

6

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

47920900

BRACKET

SCR Sensor Cable, Gray

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

1шт.
