Запчасти Case TV380 (10.206.AG) - FUEL FILTER, WATER SEPARATOR (10) - ENGINE

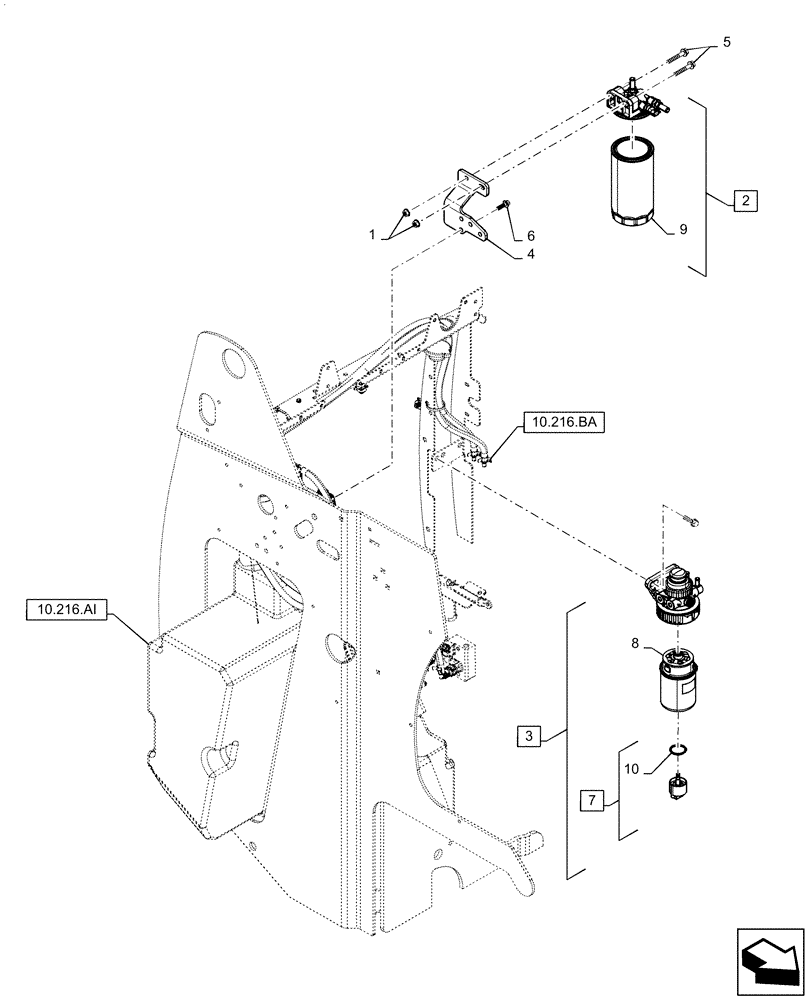

Схема запчастей Case TV380 - (10.206.AG) - FUEL FILTER, WATER SEPARATOR (10) - ENGINE
10.216.ai
8
10
1
2
3
6
4
5
9
7
10.216.ba

Артикул

Название

Примечание

Количество

1

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

2

47368458

FUEL FILTER

Housing Assy, Incl 9

1шт.

Temp Sensor is NSS

1шт.

3

47542915

FUEL FILTER

Prime Pump Assy, Incl 7 - 8

1шт.

4

47739852

BRACKET

Chassis Mounted Fuel Filter

1шт.

5

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

6

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

7

87612475

SENSOR

Water in Fuel, Incl 10

1шт.

8

84559022

FUEL FILTER,20.6mm ID x 85mm OD x 154.3mm L, W/ Water Drain

Fuel Filter & Water Separator

1шт.

Located on the Rear Door

1шт.

9

84534796

ELEMENT,Spin-on, M20 x 1.5, 96mm OD x 195mm L

1шт.

Located in the Engine Bay

1шт.

10

NSS

NOT SOLD SEPARAT

O-ring, Incl in 7

1шт.

Выбрано товаров: 13
