Запчасти Case TV380 (90.160.AS[02]) - FLOOR PLATE, FOOT CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

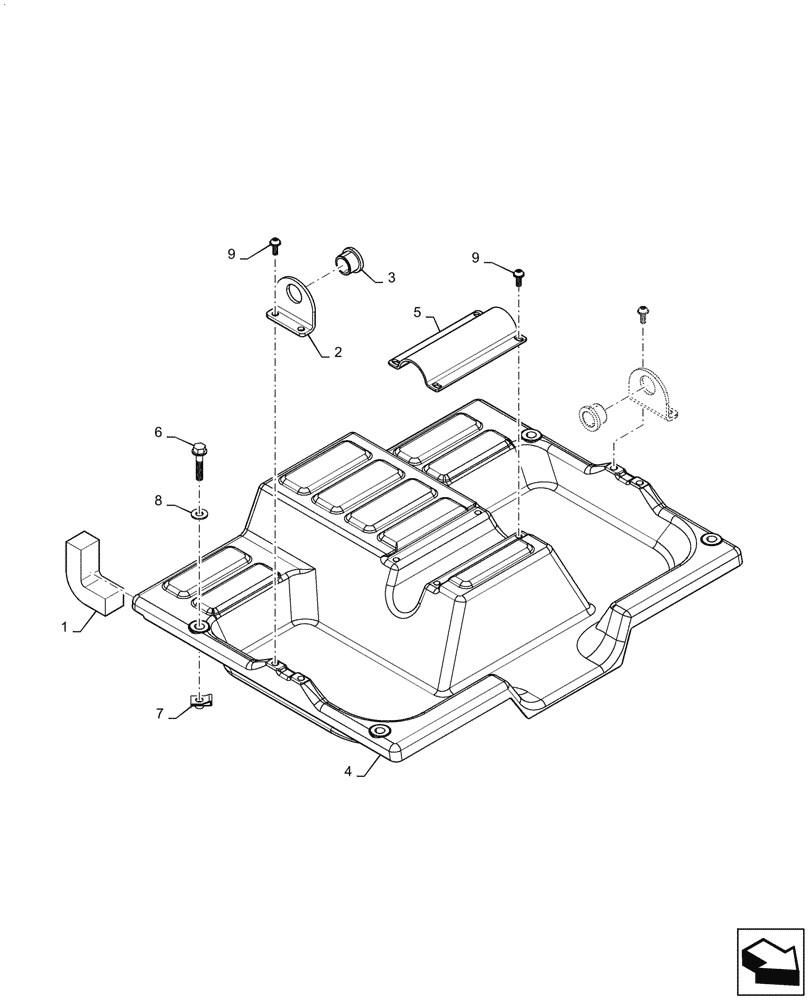

Схема запчастей Case TV380 - (90.160.AS[02]) - FLOOR PLATE, FOOT CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
5
9
1
2
8
9
6
3
4

Артикул

Название

Примечание

Количество

1

47869632

FOAM INSULATION

110mm L, Floor Plate Angle

1шт.

2

47937772

BRACKET

Foot Control, Gray

2шт.

3

47954100

BUSHING,20.02mm ID x 25.41mm OD x 19.10mm L

Outer

2шт.

4

84201059

PLATE

Floor Pedal, Black

1шт.

5

84373687

PLATE

Control Pedal Cover, Gray

1шт.

6

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.

7

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

9

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

8шт.

Выбрано товаров: 9
