(90.100.AU[01]) - HOOD & STRUT, AIR CONDITIONED

Запчасти Case TV380 (90.100.AU[01]) - HOOD & STRUT, AIR CONDITIONED (90) - PLATFORM, CAB, BODYWORK AND DECALS

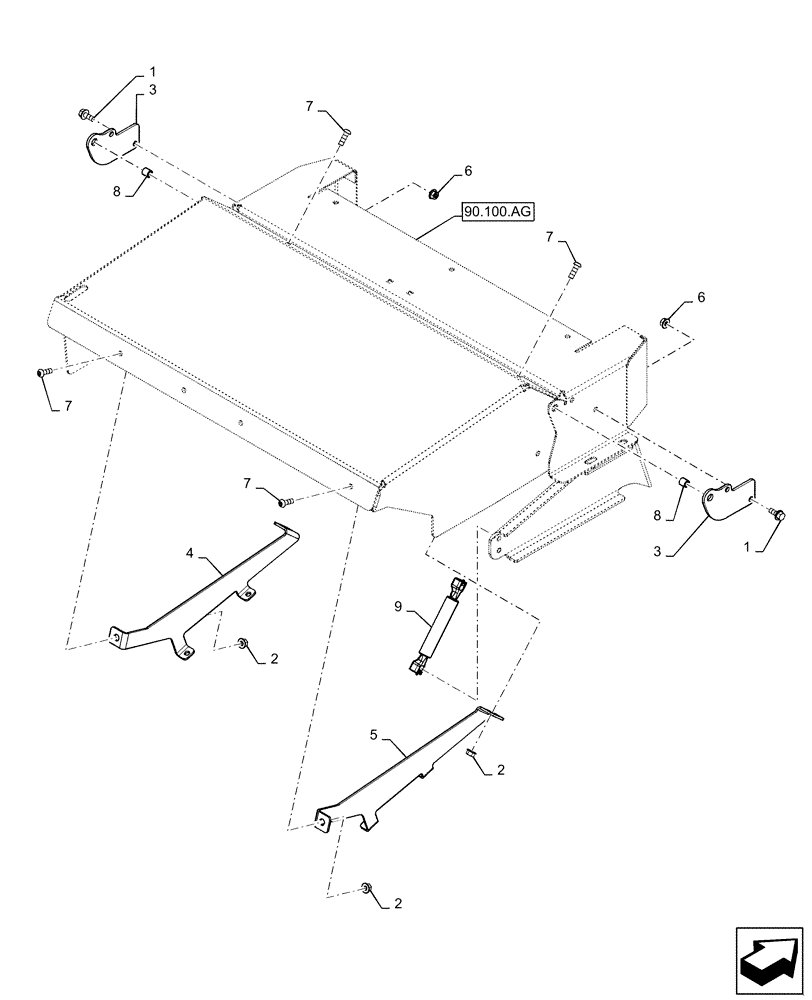

Схема запчастей Case TV380 - (90.100.AU[01]) - HOOD & STRUT, AIR CONDITIONED (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
7
4
3
7
8
2
2
9
7
7
1
8
6
6
5
3
90.100.ag
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

2

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

3

47428367

PLATE

Doubler

2шт.

4

47709985

REINFORCEMENT

LH, Tilt Hood

1шт.

5

47709989

REINFORCEMENT

RH, Tilt Hood

1шт.

6

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

7

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

4шт.

8

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

9

400472A1

SPRING,10mm Rod, 38.1mm Stroke

Hood Assist (A/C)

1шт.

Выбрано товаров: 9
