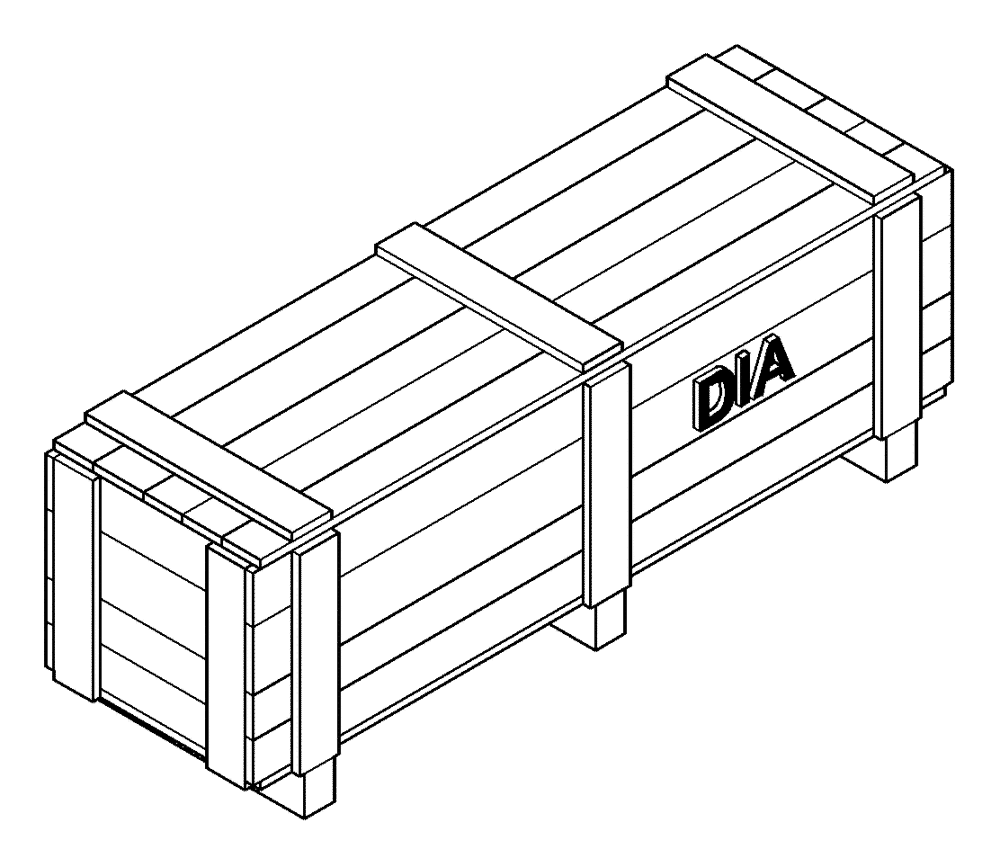

Запчасти Case TV380 (88.100.50[02]) - DIA KIT, COMPLETE HVAC (88) - ACCESSORIES

1

47934843

KIT

Complete HVAC, Incl 2 - 104

1шт.

2

47826291

INSTRUCTION

Sheet, Heater Hoses

1шт.

3

47706811

INSTRUCTION

Sheet, HVAC Bracket

1шт.

4

48043575

INSTRUCTION

Sheet, HVAC Hose Component

1шт.

5

48063671

INSTRUCTION

Sheet, Heat/HVAC Trim

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

7

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

4шт.

8

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

2шт.

9

400472A1

SPRING,10mm Rod, 38.1mm Stroke

1шт.

10

348452A1

FASTENER,Push-In, 37mm L, Nylon

10шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

12

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

13

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

1шт.

14

87669161

VENT

Global Louver

6шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

16

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

17

87649979

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

18

87649945

BRACKET

Compressor Mounting

1шт.

19

87622384

BUSHING,11mm ID x 20mm OD x 28mm L

1шт.

20

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

Cut to Length, 2180mm L

1шт.

21

87555249

SWITCH

A/C

1шт.

22

87520839

VALVE

Water, Package

1шт.

23

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

9шт.

24

87441006

TUBE,4.6mm ID x 1350mm L

1шт.

25

87355337

RELAY,12V, 45A

1шт.

26

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

27

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

28

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

4шт.

29

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

30

87000227

SWITCH, A/C HIGH PRE

5000 PSI Max

1шт.

31

86729675

SWITCH,5000 Ohm

Tempurature

1шт.

32

86729670

KNOB

Switch

2шт.

33

86729669

SWITCH

Blower

1шт.

34

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

1шт.

35

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

36

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

37

86625073

SPRING NUT,M6 x 1

4шт.

38

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

39

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

40

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

3шт.

41

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

42

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

43

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

44

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

2шт.

45

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

46

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

47

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

48

84559122

BRACKET

Water Valve & Dryer

1шт.

49

84416164

FOAM INSULATION

RH Upper Chassis

2шт.

50

84416163

FOAM INSULATION

RH Upper Chassis

2шт.

51

84411489

FOAM INSULATION

Center Upper Chassis

1шт.

52

84380240

BRACKET

Relay

1шт.

53

84370302

FOAM INSULATION

HVAC Box

1шт.

54

84362126

FOAM INSULATION

Roof

1шт.

55

84361522

BRACKET

L

1шт.

56

84360991

HOSE ASSY.,15.5mm ID x 3124mm L

1шт.

57

84357678

HOSE,15.5mm ID x 1635mm L

1шт.

58

84347258

DECAL

HVAC

1шт.

59

84338534

SEAL,Bulk 30.48m

Cut to Length, 885mm L

1шт.

60

84322901

PLATE

Cover, Yellow

1шт.

61

84322838

PLATE

Cover, Tan

1шт.

62

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.

63

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

64

82012869

CABLE TIE,300mm L, Nylon, Black

2шт.

65

48052200

TRIM PANEL

Rear, Lapbar, Fiat Gray

1шт.

66

48033462

SEALING STRIP,684mm L

1шт.

67

48031374

TRIM,Flare, 790mm L

2шт.

68

47997459

INSTRUCTION

HVAC, Sheet

1шт.

69

47984178

HEATER

W/ A/C

1шт.

70

47940021

A/C HOSE

Discharge

1шт.

71

47939999

A/C HOSE

Liquid

1шт.

72

47939974

A/C HOSE

Suction

1шт.

73

47939973

A/C HOSE

Discharge

1шт.

74

47929817

WIRE HARNESS

HVAC Jumper

1шт.

75

47919725

BRACKET

Tensioner

1шт.

76

47919015

DUCT

RH Air, Trim, Fiat Gray

1шт.

77

47919014

DUCT

LH Air, Trim, Fiat Gray

1шт.

78

47918644

FASTENER,Pine Tree, 26.9mm L, Nylon

7шт.

79

47821526

RECEIVER-DRYER

1шт.

80

47741862

AIRCOND. COMPRESSOR,12V, W/Clutch, W/ Pulley

1шт.

81

47709989

REINFORCEMENT

1шт.

82

47709985

REINFORCEMENT

1шт.

83

47707866

FITTING,5/8” Hose Barb Union

1шт.

84

47679222

BRACKET

HVAC Hose, Spring Mounting

1шт.

85

47654850

V-BELT,14.24mm W x 930.1mm L, 4 Ribs

1шт.

86

47627999

HEATER HOSE,15.5mm ID, Formed

1шт.

87

47610130

FITTING,M35 x 1.5, 1/2" - 14 NPTF

1шт.

88

47568942

DUCT

Air Intake

1шт.

89

47537889

GAS STRUT,372mm Extended, 327mm Compressed

Enclosed Cab

1шт.

90

47503835

PLATE

Doubler, Yellow

2шт.

91

47428367

PLATE

Doubler, Gray

2шт.

92

47376521

CONDENSER

Assy

1шт.

93

9804278

FLANGE NUT,M10 x 1.5, Cl 8

5шт.

94

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

95

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

96

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

97

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

98

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

99

9706690

NUT,M8 x 1.25, Cl 8

1шт.

100

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

101

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

102

629781

FITTING,90 Degree, 5/8" Hose x 1/2" NPTF Beaded

1шт.

103

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

104

120100

BOLT,M6 x 20mm, Cl 8.8

5шт.
