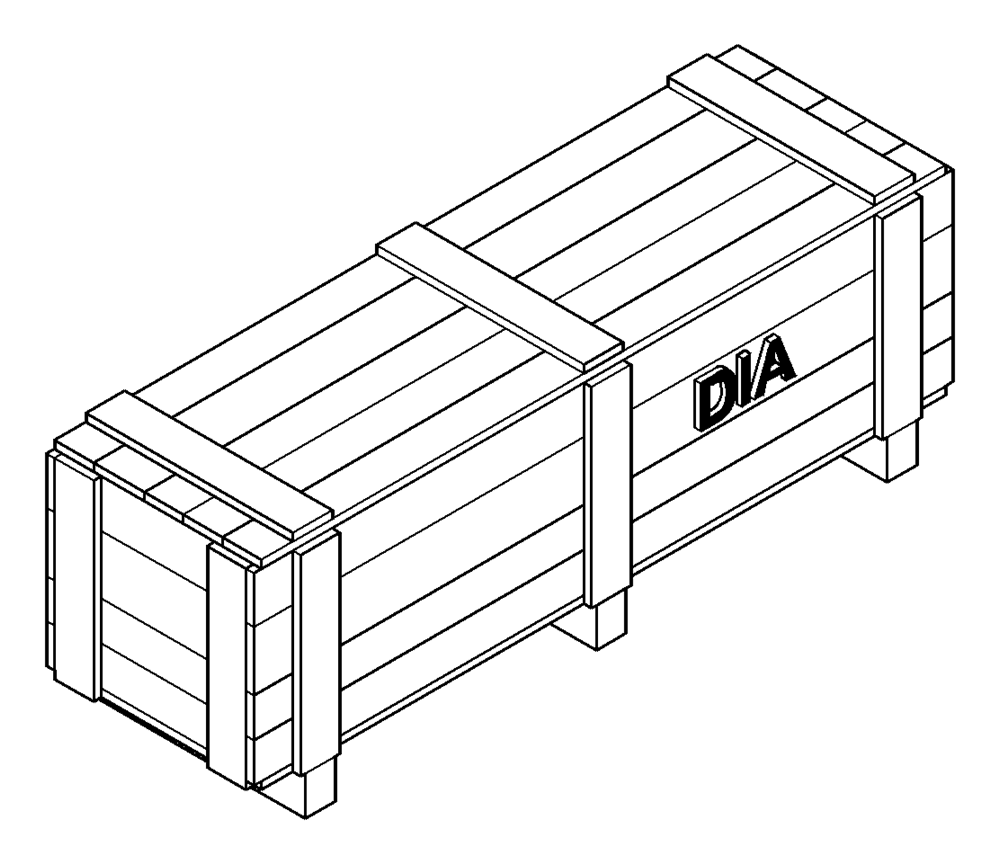

Запчасти Case TV380 (88.100.35[06]) - DIA KIT, HYDRAULIC COUPLER (88) - ACCESSORIES

1

47766731

KIT

Hydraulic Coupler, Incl 2 - 58

1шт.

2

47766905

INSTRUCTION

Sheet

1шт.

3

84256406

HYDRAULIC VALVE

Coupler

1шт.

4

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

Incl 56

1шт.

5

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Incl 56

1шт.

6

47539004

TUBE

Hydraulic Coupler

1шт.

7

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

9

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

10

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

11

84251346

SWITCH

Rocker, Hydraulic Coupler

1шт.

12

84546403

BRANCH TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 3/4" - 16 JIC

Incl 57

1шт.

13

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

3шт.

14

84555943

HYD TUBE

438.95mm L, Coupler, Chassis

1шт.

15

84555945

HYD TUBE

414.43mm L, Coupler, Chassis

1шт.

16

84555947

HYDRAULIC HOSE,6.35mm ID x 565mm L, SAE 100R17

Coupler

2шт.

17

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube Cap

2шт.

18

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double

2шт.

19

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

2шт.

20

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

21

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

22

87752074

SCREW,HWH, M8 x 1.25 x 16mm

1шт.

23

84201227

HOSE,12.7mm ID x 615mm L

Hydraulic Coupler, Drain

1шт.

24

47766775

HYDRAULIC CYLINDER

Coupler

2шт.

25

47423456

STEP,619mm L

Hydraulic Coupler

1шт.

26

86512993

ELBOW,45 Degree, 7/16" - 20 JIC x 7/16" - 20 ORB

Incl 58

2шт.

27

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

Incl 58

2шт.

28

47600574

ROD,275mm L

Hydraulic Coupler Position Indicator

2шт.

29

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

30

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

31

47418981

CHECK VALVE

Hydraulic Coupler

1шт.

32

47426340

HYDRAULIC HOSE,6.35mm ID x 456mm L, SAE 100R16

1шт.

33

47426339

HYDRAULIC HOSE,6.35mm ID x 240mm L, SAE 100R16

1шт.

34

47426341

HYDRAULIC HOSE,6.35mm ID x 469mm L, SAE 100R17

1шт.

35

47426342

HYDRAULIC HOSE,6.35mm ID x 255mm L, SAE 100R17

1шт.

36

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

37

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

38

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

39

87026500

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

40

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

41

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 56

2шт.

42

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

43

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

1шт.

44

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

Tube

1шт.

45

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

46

84551177

HYD TUBE

2761.50mm L, Coupler

1шт.

47

84555936

HYD TUBE

2740.46mm L, Coupler

1шт.

48

84281694

HOSE ASSY.,6.35mm ID x 1845mm L, SAE 100R17

Hydraulic Coupler

2шт.

49

605025

CLAMP,3/8", Coated, 3/8" Bolt

Tube

1шт.

50

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

51

47426343

HOSE ASSY.,6.35mm ID x 786mm L, SAE 100R17

Hydraulic Coupler

2шт.

52

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

53

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

54

47401099

HOSE,36.1mm ID x 825mm L

Hydraulic Coupler, Guard

1шт.

55

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

56

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

57

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

58

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.
