(88.100.35[01]) - DIA KIT, ATTACHMENT HOSE GUIDE, HYDRAULIC COUPLER

Запчасти Case TV380 (88.100.35[01]) - DIA KIT, ATTACHMENT HOSE GUIDE, HYDRAULIC COUPLER (88) - ACCESSORIES

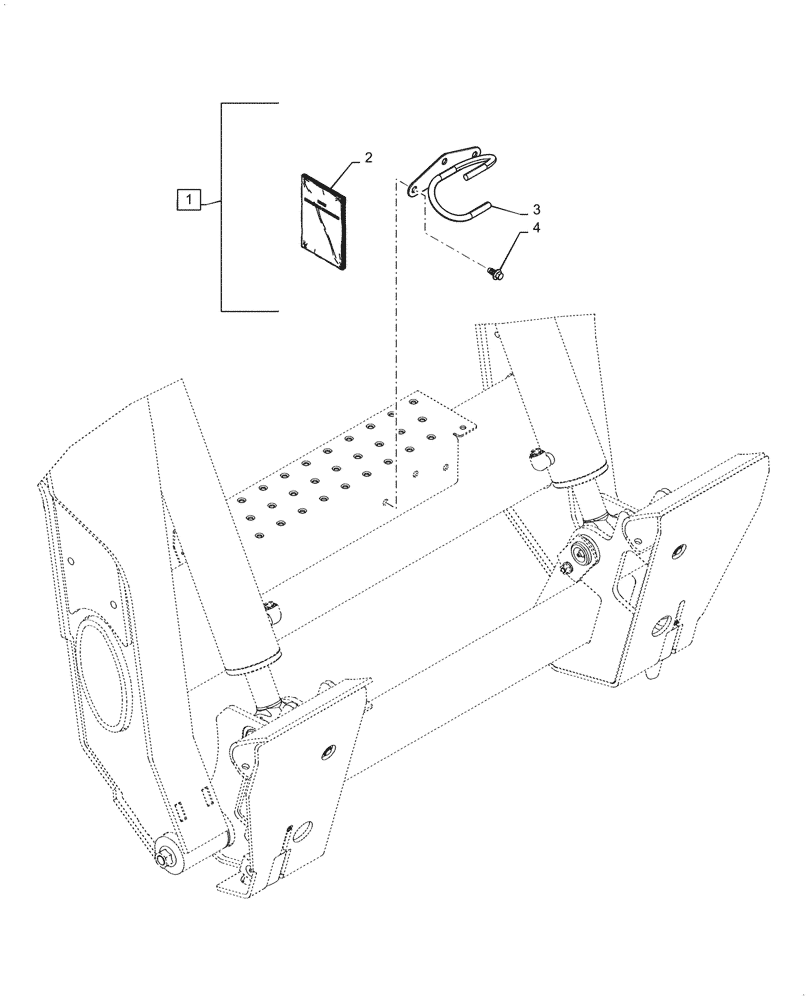

Схема запчастей Case TV380 - (88.100.35[01]) - DIA KIT, ATTACHMENT HOSE GUIDE, HYDRAULIC COUPLER (88) - ACCESSORIES
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84384872

SERVICE KIT

Attachment Hose Guide, Hydraulic Coupler, Incl 2 - 4

1шт.

2

84384873

INSTRUCTION

Sheet

1шт.

3

84384871

BRACKET

Hose Guide

1шт.

4

87752074

SCREW,HWH, M8 x 1.25 x 16mm

2шт.

Выбрано товаров: 4
