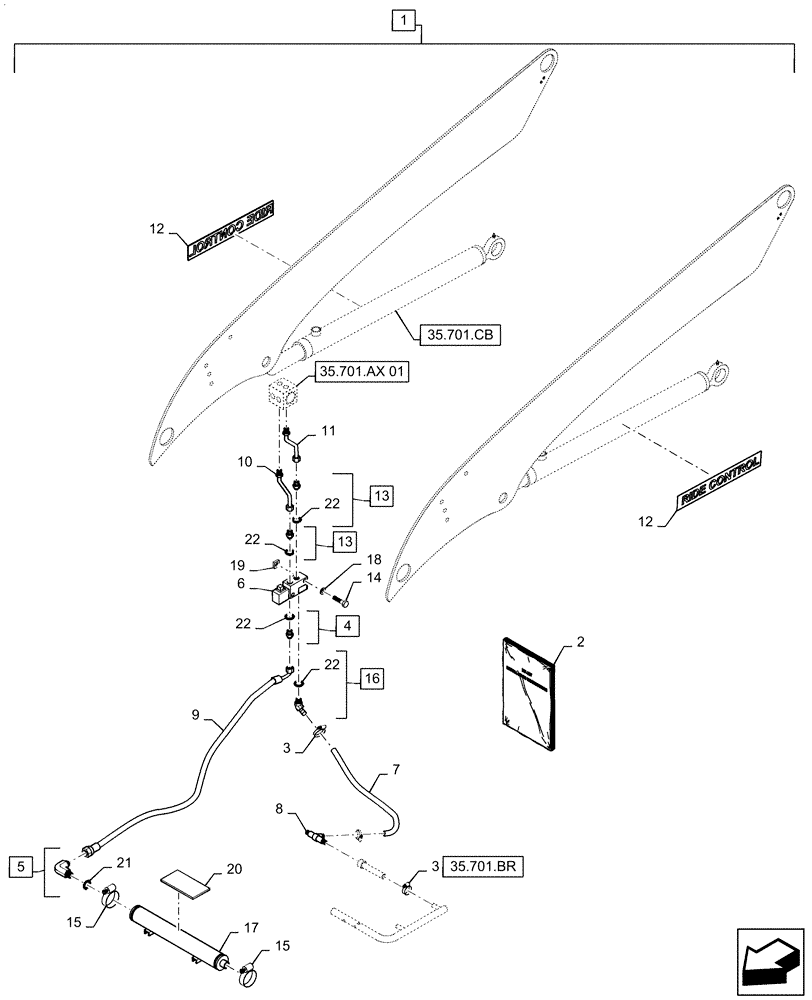

Запчасти Case TV380 (88.100.29[03]) - DIA KIT, RIDE CONTROL, MED-LRG (88) - ACCESSORIES

1

47715720

KIT

Ride Control, Incl 2 - 22

1шт.

2

47715768

INSTRUCTION

Ride Control

1шт.

3

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

3шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 22

1шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 21

1шт.

6

47712515

VALVE

Ride Control

1шт.

7

84259548

HOSE,12.7mm ID x 560mm L

Ride Control, Drain

1шт.

8

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

9

84331280

HOSE,9.53mm ID x 1550mm L, SAE 100R17

Ride Control Valve to Accumulator

1шт.

10

84375899

RIGID TUBE

Ride Control to Manifold

1шт.

11

84375901

RIGID TUBE

Ride Control to Manifold

1шт.

12

84493112

DECAL

Ride Control

2шт.

13

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 22

2шт.

14

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

15

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

16

87302140

FITTING,45 Degree, 1/2" Hose x 9/16" - 18 ORB Beaded

Incl 22

1шт.

17

87403797

ACCUMULATOR,275 Bar, 0.75L

Hydraulic

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

20

328903A1

DECAL

Accumulator

1шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.
