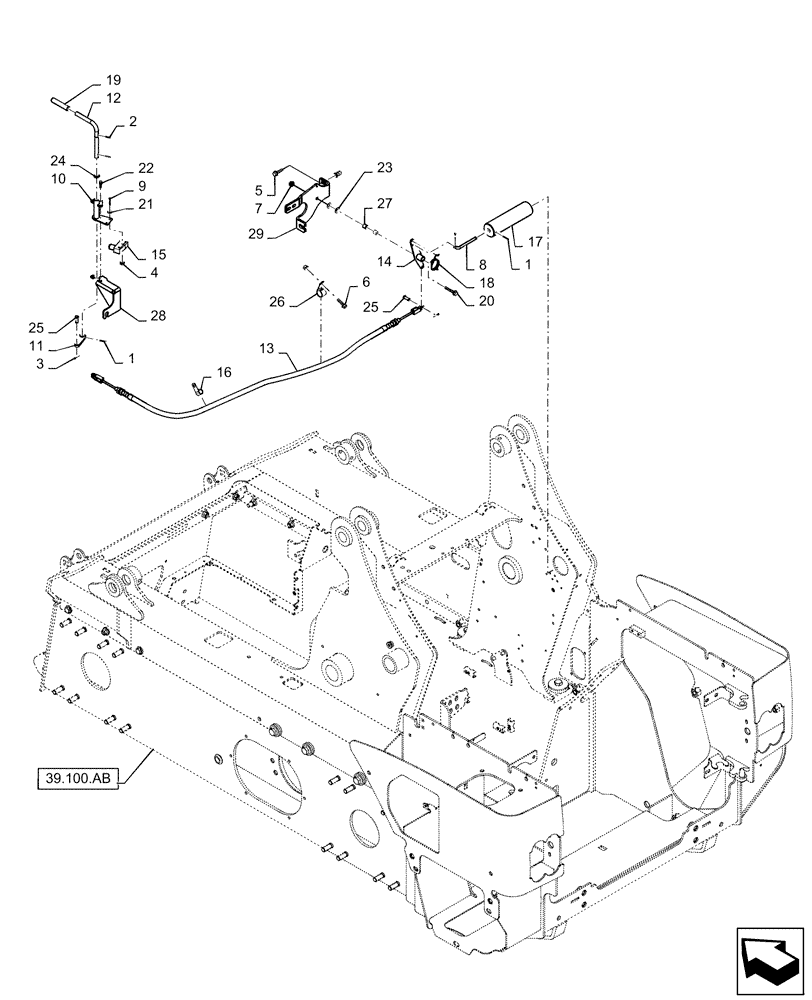

Запчасти Case TV380 (82.100.AH) - BOOM LOCKING DEVICE (82) - FRONT LOADER & BUCKET

1

87455

SLOTTED PIN,1/8" OD x 1" OAL

2шт.

2

87663

LOCK PIN,1/8" OD x 3/4" L, Slotted Spring

2шт.

3

280250

COTTER PIN,3/32" OD x 3/4" L

3шт.

4

280859

NUT,Keps, #6-32

2шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

47570252

LINK,7.94mm OD x 83.5mm L

Boom Lock Pin

1шт.

9

47570937

SCREW,Cross Pan HD, #6-32 x 1-1/8"

2шт.

10

47618619

TUBE

Handle Pivot

1шт.

11

47618636

LEVER

Handle

1шт.

12

47618649

HANDLE

Locking

1шт.

13

47684430

CABLE,1827mm L

Boom Lock

1шт.

14

47705300

BELLCRANK

Upper Boom Lock

1шт.

15

87051110

DOOR SWITCH

Seat Bar

1шт.

16

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

17

84325375

PIN,50.8mm OD x 192mm L

Boom Lock

1шт.

18

84331883

TORSION SPRING,Torsion, 38.1mm OD x 12.19mm L

3.25 Coils

1шт.

19

84331884

GRIP,76mm L

Vinyl Sleeve

1шт.

20

84401335

BOLT,Hex, M8 x 45mm, Cl 10.9

1шт.

21

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

2шт.

22

86625224

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

3шт.

23

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

24

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

25

86629892

CLEVIS PIN,5/16" OD x 0.940" L

2шт.

26

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

27

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

28

47764167

BRACKET

Cable Support

1шт.

29

47765462

BRACKET

Pivot

1шт.
