(55.512.BW[02]) - MULTIFUNCTION ELECTRICAL, MECHANICAL/EH NA/EU NO LIGHTS

Запчасти Case TV380 (55.512.BW[02]) - MULTIFUNCTION ELECTRICAL, MECHANICAL/EH NA/EU NO LIGHTS (55) - ELECTRICAL SYSTEMS

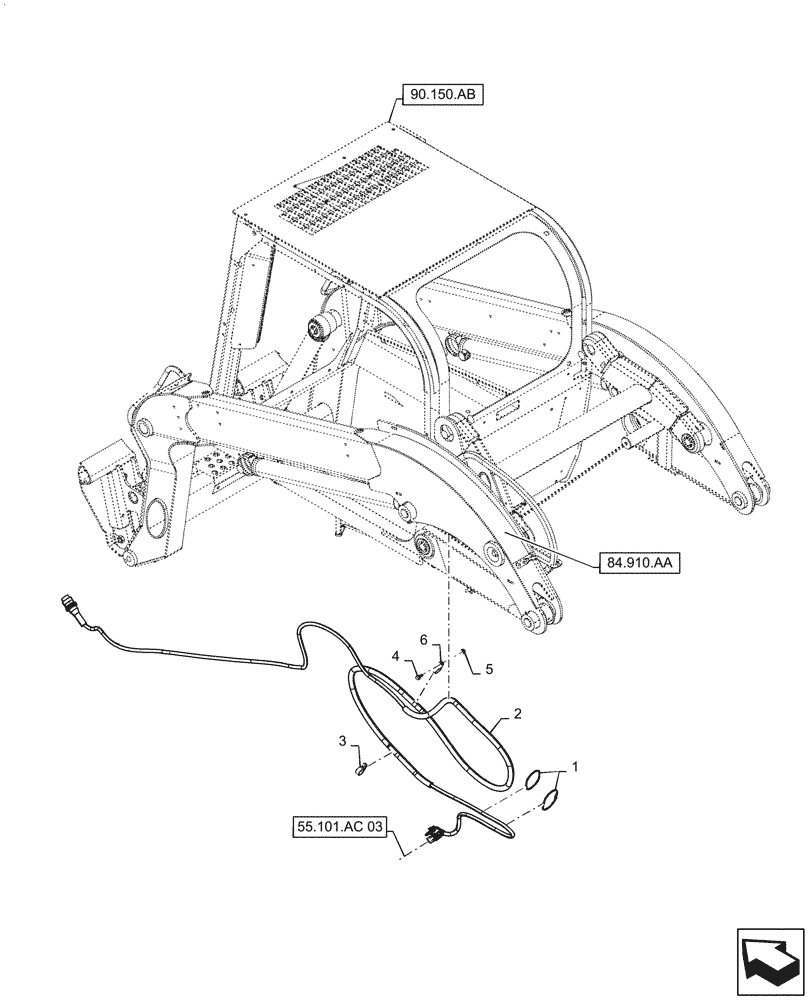

Схема запчастей Case TV380 - (55.512.BW[02]) - MULTIFUNCTION ELECTRICAL, MECHANICAL/EH NA/EU NO LIGHTS (55) - ELECTRICAL SYSTEMS
1
90.150.ab
6
2
5
4
55.101.ac 03
3
84.910.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

2шт.

2

47656836

WIRE HARNESS

Aux Electrical, Vertical Lift

1шт.

3

84467699

CLAMP,25.4mm, Insulated, 8.7mm Bolt Hole - P Type

1шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

Выбрано товаров: 6
