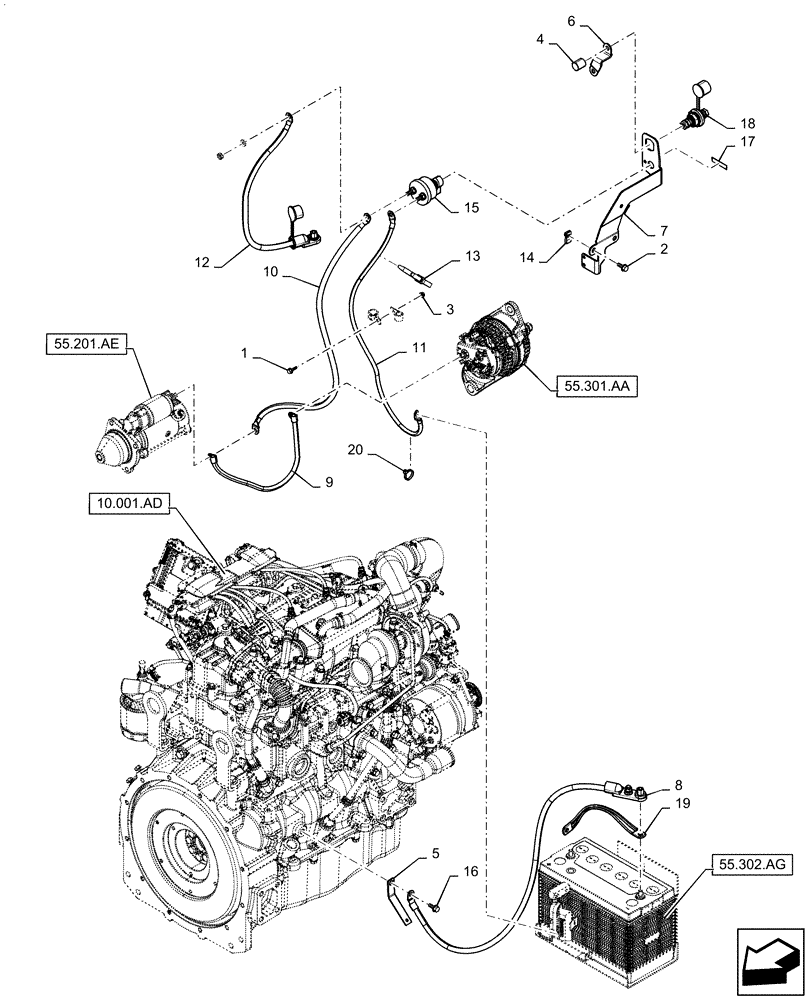

Запчасти Case TV380 (55.302.AI) - BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS

1

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

4

47455442

CAP,19.5mm ID x 22.35mm OD x 25.4mm L

Terminal Insulator

1шт.

5

47643801

ANGLE

Negative Cable Retention Battery Disconnect

1шт.

6

47662616

BAR

Battery Disconnect

1шт.

7

47707326

BRACKET

Battery Disconnect Mounting

1шт.

8

47754638

NEG BATTERY CABLE,1018mm L

1018mm L, Negative Battery Terminal to Engine Ground

1шт.

9

47776508

CABLE,442.5mm L

422.5mm L, Alternator to Starter

1шт.

10

47776509

CABLE,825mm L

825mm L, Disconnect Switch to Starter

1шт.

11

47776510

CABLE,950mm L

950mm L, Disconnect Switch to Fuse

1шт.

12

47776511

CABLE,618mm L

618mm L, Battery Positive Terminal to Disconnect Switch

1шт.

13

84386243

CLAMP,489mm L

Dual Tie

1шт.

14

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

15

87458467

ROTARY SWITCH

Master Battery Disconnect

1шт.

16

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

17

176332A1

DECAL

Battery Disconnect

1шт.

18

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Remote Positive Jump Start

1шт.

19

D140369

GROUND STRAP,260mm L

260mm L, Ground Strap

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
