(35.701.BU[01]) - NO SELF LEVEL, MECHANICAL CONTROLS

Запчасти Case TV380 (35.701.BU[01]) - NO SELF LEVEL, MECHANICAL CONTROLS (35) - HYDRAULIC SYSTEMS

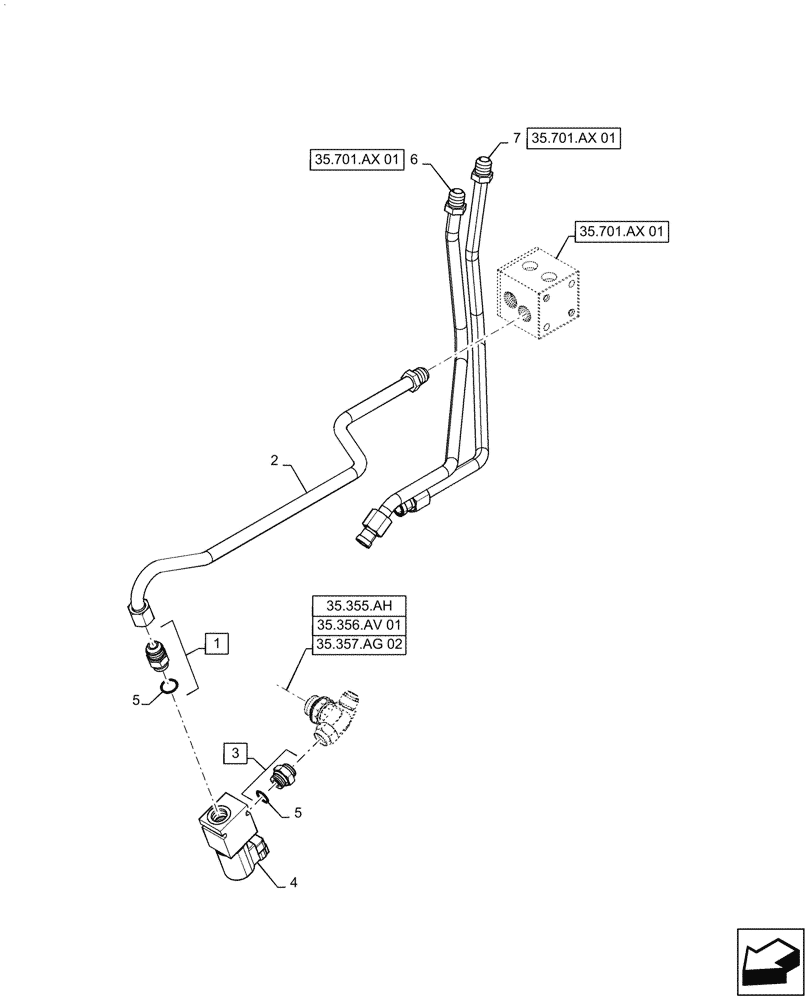

Схема запчастей Case TV380 - (35.701.BU[01]) - NO SELF LEVEL, MECHANICAL CONTROLS (35) - HYDRAULIC SYSTEMS
35.355.ah
4
1
7
6
5
2
3
5
35.701.ax 01
35.701.ax 01
35.701.ax 01
35.356.av 01
35.357.ag 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 6

1шт.

2

47383485

TUBE

15.9mm OD, Lower, Loader Valve to Manifold

1шт.

3

84586982

HYD CONNECTOR,7/8" - 14 Fem Sw x 3/4" - 16 ORB

Incl 6

1шт.

4

84593149

VALVE

Rod Lock

1шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

47844695

HYD TUBE

Loader Valve to Right Arm, Rear

1шт.

7

47893491

HYD TUBE

Loader Valve to Right Arm, Front

1шт.
