(35.525.AH[02]) - HYDRAULIC MANIFOLD, HIGH FLOW C.U.P.

Запчасти Case TV380 (35.525.AH[02]) - HYDRAULIC MANIFOLD, HIGH FLOW C.U.P. (35) - HYDRAULIC SYSTEMS

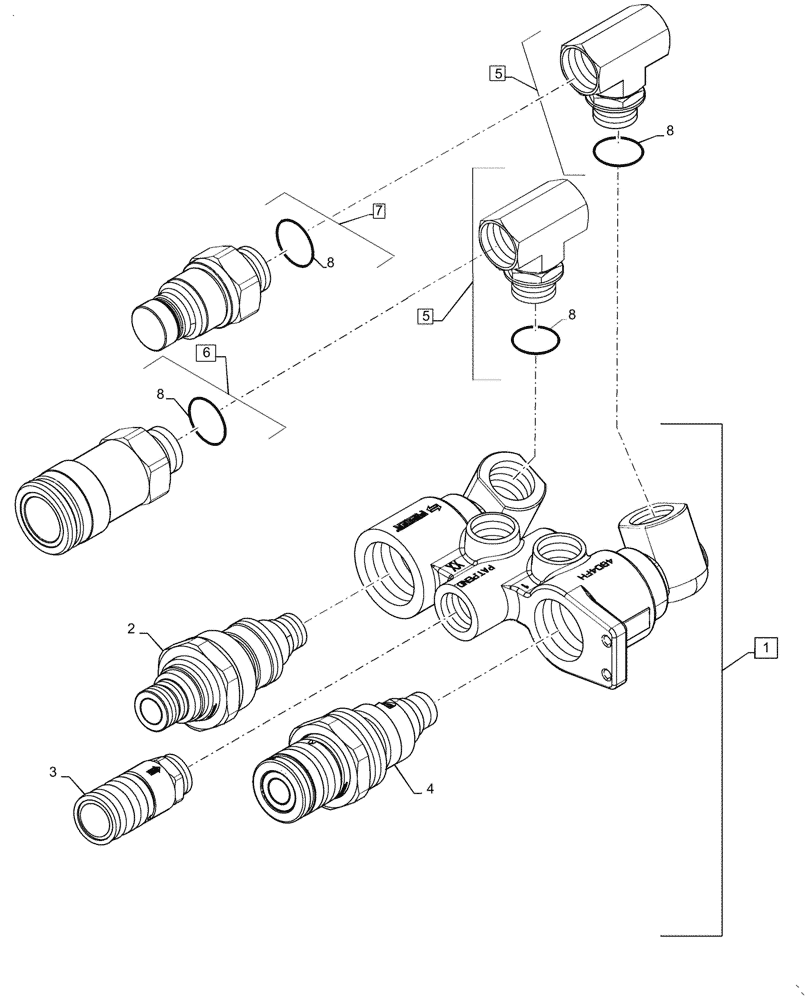

Схема запчастей Case TV380 - (35.525.AH[02]) - HYDRAULIC MANIFOLD, HIGH FLOW C.U.P. (35) - HYDRAULIC SYSTEMS
1
3
8
2
7
6
5
8
5
8
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47447054

VALVE

High Flow C.U.P. Manifold, Incl 2 - 4

1шт.

2

47396760

COUPLING,1/2" Male

1шт.

3

47396762

COUPLING,3/8" Female

1шт.

4

47396761

COUPLING,1/2" Female

1шт.

5

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Incl 8

2шт.

6

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Incl 8

1шт.

7

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Incl 8

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

Выбрано товаров: 8
