(35.525.AA[13]) - AUXILIARY HYDRAULIC, HIGH FLOW, MANIFOLD, COVER ASSY

Запчасти Case TV380 (35.525.AA[13]) - AUXILIARY HYDRAULIC, HIGH FLOW, MANIFOLD, COVER ASSY (35) - HYDRAULIC SYSTEMS

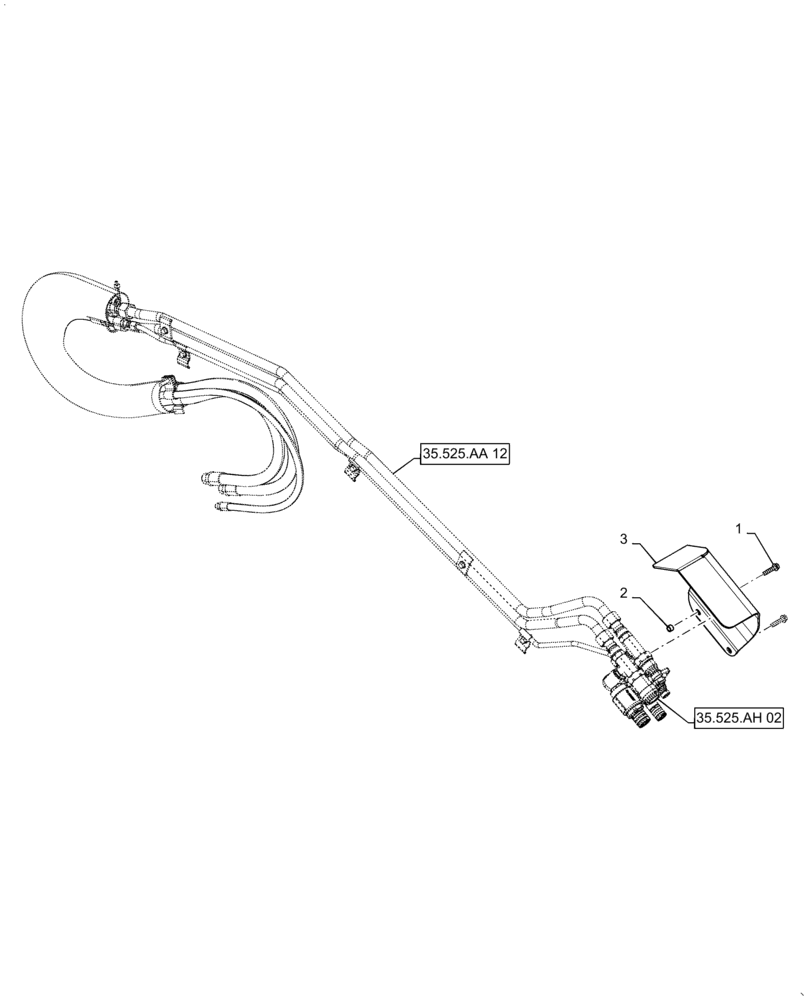

Схема запчастей Case TV380 - (35.525.AA[13]) - AUXILIARY HYDRAULIC, HIGH FLOW, MANIFOLD, COVER ASSY (35) - HYDRAULIC SYSTEMS
2
3
35.525.ah 02
1
35.525.aa 12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

2

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

3

84306937

COVER PLATE

Hydraulic

1шт.

Выбрано товаров: 3
