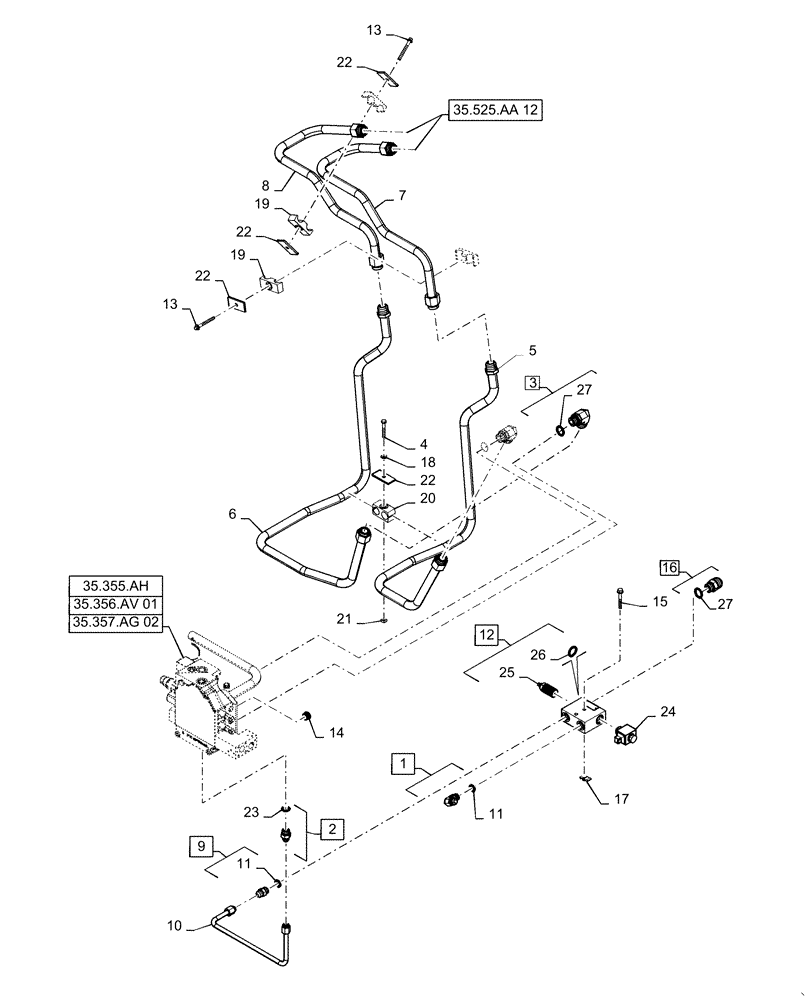

Запчасти Case TV380 (35.525.AA[11]) - AUXILIARY HYDRAULIC, HIGH FLOW, CHASSIS MOUNTED (35) - HYDRAULIC SYSTEMS

1

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 11

1шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 23

1шт.

3

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 27

2шт.

4

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

5

47560344

TUBE

25.4mm OD, Aux High Flow, Loader Valve to Lift Tower, Female Run

1шт.

6

47560346

TUBE

25.4mm OD, Aux High Flow, Loader Valve to Lift Tower, Male Run

1шт.

7

47560349

TUBE

25.4mm OD, Aux, High Flow LH Tower, Female Run

1шт.

8

47560352

TUBE

25.4mm OD, Aux, High Flow LH Tower, Male Run

1шт.

9

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 11

1шт.

10

47900681

HYD TUBE

12.7mm OD, High Flow Valve to Loader Valve

1шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

12

84256405

HYDRAULIC VALVE

High Flow Combiner Incl 24 - 26

1шт.

13

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

2шт.

14

84373460

PLUG,23.8mm OD

23.8mm OD, Load Check

1шт.

15

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

16

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 27

1шт.

17

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

19

1546028C1

CLAMP,25.4mm ID x 82mm L

Hydraulic Tube

2шт.

20

225529A1

CLAMP,Dual, 25.4mm ID

Tube

1шт.

21

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

22

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Clamp Top

4шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

84390144

COIL

High Flow Combiner

1шт.

25

84304583

POPPET

Valve, High Flow Combiner 2W2P

1шт.

26

84304585

SEAL KIT

High Flow Combiner, Services 12

1шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.
