Запчасти Case TV380 (35.356.AV [01]) - LOADER CONTROL VALVE, FOOT CONTROL VALVE (35) - HYDRAULIC SYSTEMS

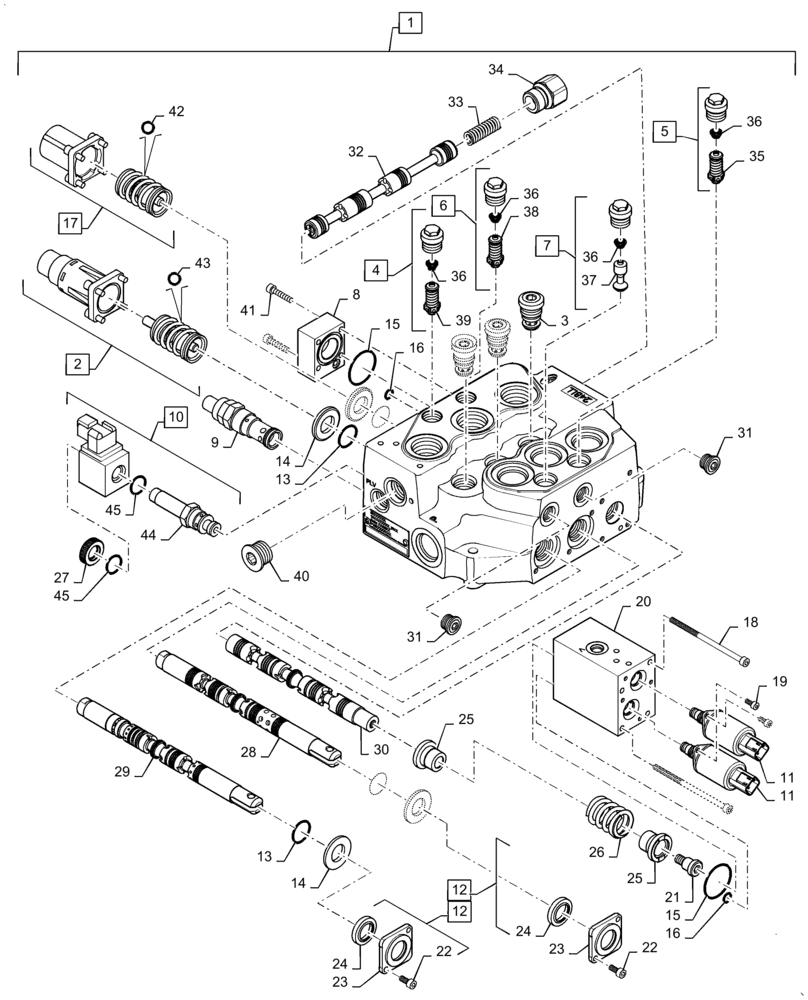

Схема запчастей Case TV380 - (35.356.AV [01]) - LOADER CONTROL VALVE, FOOT CONTROL VALVE (35) - HYDRAULIC SYSTEMS
25
33
14
22
44
6
5
15
20
37
10
13
1
45
2
40
29
24
16
36
7
26
15
27
19
41
30
11
36
23
14
38
24
25
36
28
12
12
4
36
45
34
35
17
32
31
42
16
23
13
31
9
43
39
21
8
18
22
3
11

Артикул

Название

Примечание

Количество

1

47408223

CONTROL VALVE

Loader, Foot, Incl 2 - 45

1шт.

2

84386280

KIT

Foot Boom Spring, Incl 43

1шт.

3

84386281

CHECK VALVE

Load

3шт.

4

84386282

VALVE PRESSURE RELIE

225 Bar, Port Relief, Incl 36, 39

1шт.

5

84598798

VALVE

80 Bar, Port Relief, Incl 35 - 36

1шт.

6

47458153

VALVE

260 Bar, Port Relief, Incl 36, 38

1шт.

7

84386285

HYDRAULIC VALVE

Anti - Cavitation, Incl 36 - 37

1шт.

8

84386286

CAP

EH Aux End

1шт.

9

84386287

VALVE PRESSURE RELIE

210 Bar, Port

1шт.

10

84386288

HYDRAULIC VALVE

PLV Cartridge, Incl 27, 44 - 45

1шт.

11

84386289

VALVE, PRESSURE CONT

Pressure Reducing

2шт.

12

84386290

KIT

Valve Spool Wiper, Incl 22 - 24

3шт.

13

84386291

O-RING

Spool

4шт.

14

84386292

BACK-UP RING

Spool

4шт.

15

84386293

O-RING

EH Spool Cap

2шт.

16

84386294

O-RING

EH Spool Passage

3шт.

17

84386279

KIT

Foot Bucket Spring, Incl 42

1шт.

18

NSS

NOT SOLD SEPARAT

Command Body Mounting Bolt, Incl in 1

4шт.

19

NSS

NOT SOLD SEPARAT

Pressure Reducing Valve Mounting Bolt, Incl in 1

4шт.

20

NSS

NOT SOLD SEPARAT

Command Valve, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Flange Mounting Bolt, Incl in 1, 12

4шт.

23

NSS

NOT SOLD SEPARAT

Flange, Incl in 1, 12

2шт.

24

NSS

NOT SOLD SEPARAT

Dust Cover, Incl in 1, 12

2шт.

25

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

2шт.

26

NSS

NOT SOLD SEPARAT

Command Spring, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Ring Nut, Incl in 1, 10

1шт.

28

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

31

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

32

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

33

NSS

NOT SOLD SEPARAT

Spool Spring, Incl in 1

1шт.

34

NSS

NOT SOLD SEPARAT

Spool Joint, Incl in 1

1шт.

35

NSS

NOT SOLD SEPARAT

Valve Kit, Incl in 1, 5

1шт.

36

NSS

NOT SOLD SEPARAT

Conical Spring, Incl in 1, 4 - 7

4шт.

37

NSS

NOT SOLD SEPARAT

Shutter Valve, Incl in 1, 7

1шт.

38

NSS

NOT SOLD SEPARAT

Spring, Incl in 1, 6

1шт.

39

NSS

NOT SOLD SEPARAT

Spring, Incl in 1, 4

1шт.

40

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

41

NSS

NOT SOLD SEPARAT

EH Aux End Mounting Bolt, Incl in 1

4шт.

42

NSS

NOT SOLD SEPARAT

MD Version Kit, Incl in 1, 17

1шт.

43

NSS

NOT SOLD SEPARAT

Version Kit, Incl in 1 - 2

1шт.

44

NSS

NOT SOLD SEPARAT

Cartridge, Incl in 1, 10

1шт.

45

NSS

NOT SOLD SEPARAT

Cartridge O-Ring, Incl in 1, 10

2шт.

Выбрано товаров: 45
