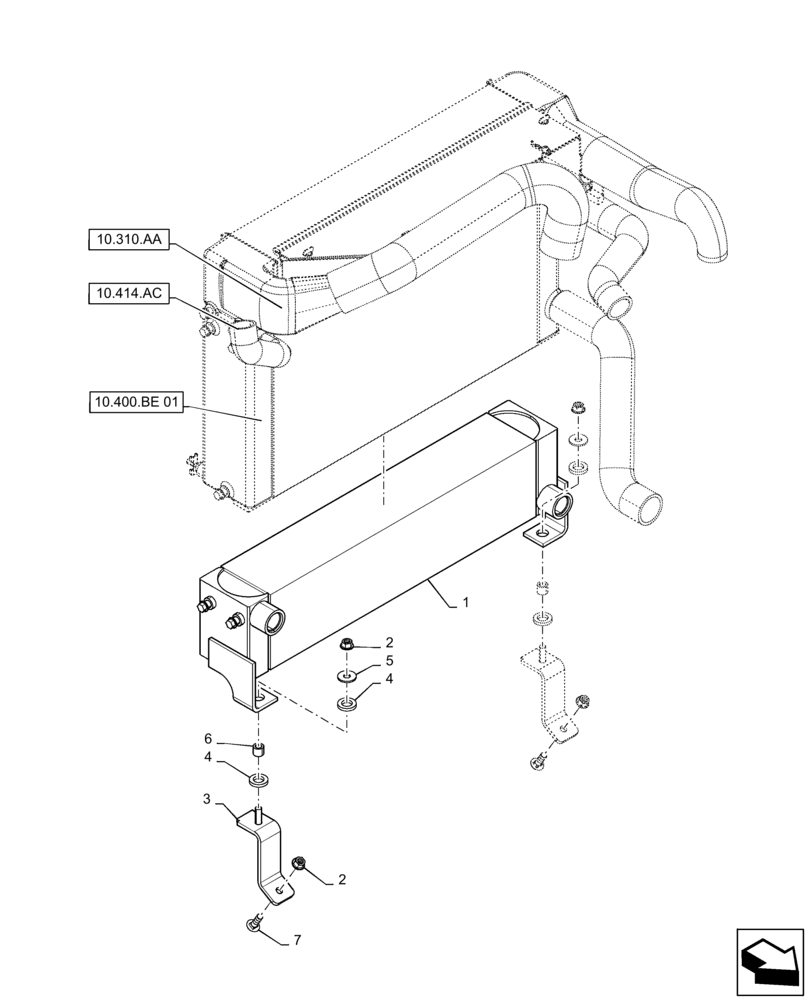

Запчасти Case TV380 (35.300.AB) - HYDRAULIC OIL COOLER (35) - HYDRAULIC SYSTEMS

1

47632167

OIL COOLER

Standard Fin Density, Years: -31-MAR-15

1шт.

1

47801215

OIL COOLER

Standard Fin Density, Start Year: 01-APR-15

1шт.

1

47702957

OIL COOLER

Low Fin Density, Years: -31-MAR-15

1шт.

1

47823637

OIL COOLER

Low Fin Density, Start Year: 01-APR-15

1шт.

2

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

3

47818613

ANGLE

Oil Cooler Support

2шт.

4

47643491

RUBBER WASHER,17.5mm ID x 30mm OD x 5mm Thk

Oil Cooler Mounting

4шт.

5

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

6

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

Bushing, Years: -31-MAR-15

2шт.

6

435542A1

SPACER,10.74mm ID x 17.15mm OD x 17.8mm L

Bushing, Start Year: 01-APR-15

2шт.

7

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.
