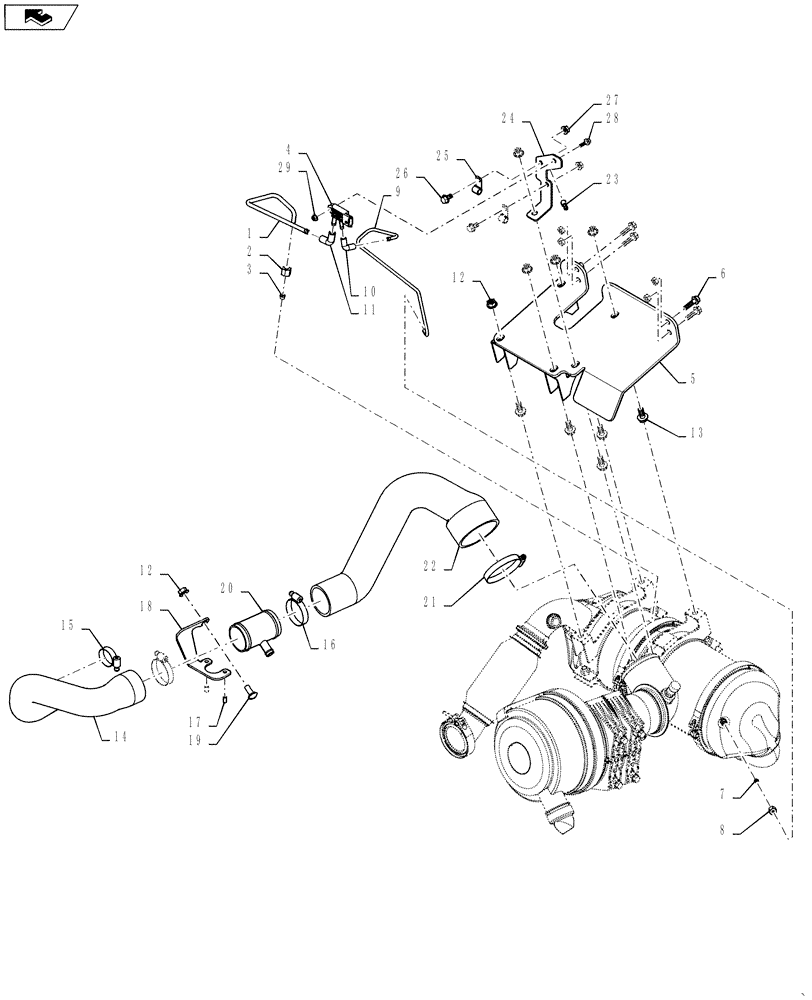

Запчасти Case TV380 (10.254.03[02]) - INTAKE AND EXHAUST, LARGE VERTICAL, TIER 4, MOUNTING (10) - ENGINE

1

84426108

TUBE

Delta P

1шт.

2

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

1шт.

3

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

Sleeve

1шт.

4

84286249

SENSOR

DPF Delta Pressure

1шт.

5

84551142

ANGLE

DPF Mounting

1шт.

6

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

7

3138533R1

SLEEVE,Cutting Ring, 6mm ID x 9mm OD

1шт.

8

87774044

NUT,24 Degree, L6 Coupling, M12 x 1.5

Tube, L6 Coupling

1шт.

9

84558084

TUBE

Assy, Delta P

1шт.

10

84492738

HOSE

Intake Air

1шт.

11

84426109

HOSE

Intake Air

1шт.

12

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

13

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

5шт.

14

47411237

HOSE

Coupler To Turbo

1шт.

15

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

16

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

17

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

2шт.

18

84574164

BRACKET

Air Cleaner Coupler

1шт.

19

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

20

87610560

HOSE

Intake Hose And CCV

1шт.

21

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

2шт.

22

84551136

HOSE

Intake Air, Air Cleaner To Coupler

1шт.

23

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

4шт.

24

84426487

BRACKET

Delta P Sensor

1шт.

25

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

26

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

27

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

28

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

29

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.
