Запчасти Case TV380 (95.088.SPA[02]) - SNOW PUSHER ATTACHMENT, SIDE PANEL & MOLDBOARD ATTACHING HARDWARE (95) - CE ATTACHMENTS

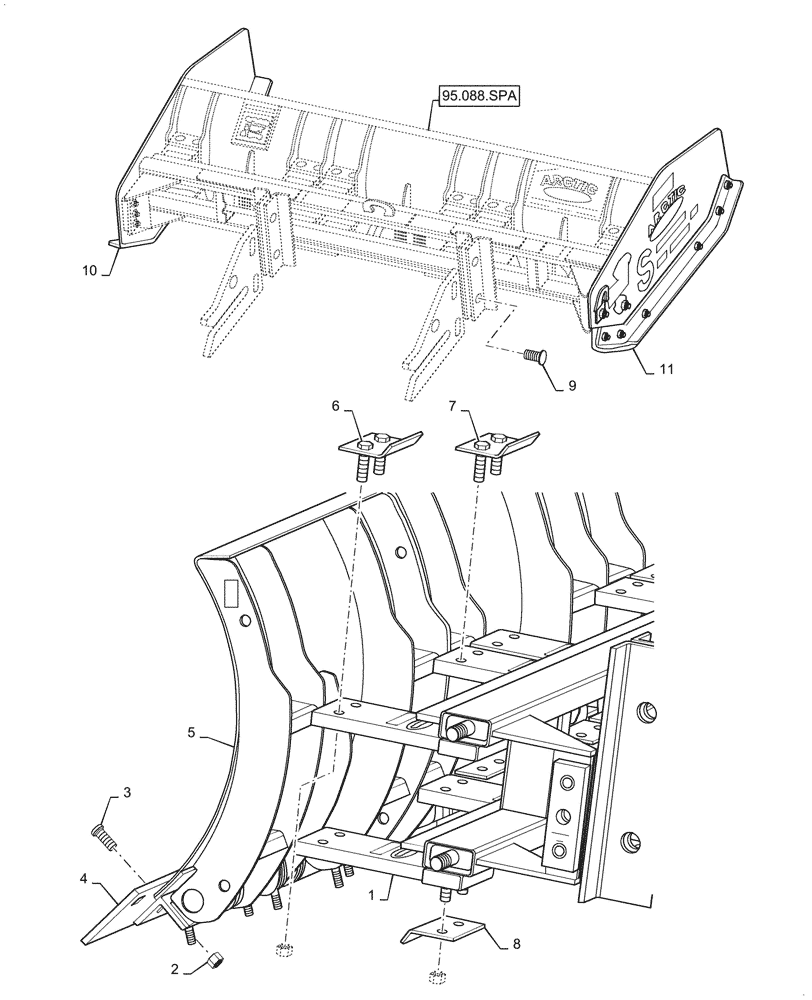

Схема запчастей Case TV380 - (95.088.SPA[02]) - SNOW PUSHER ATTACHMENT, SIDE PANEL & MOLDBOARD ATTACHING HARDWARE (95) - CE ATTACHMENTS
2
95.088.spa
8
7
10
4
1
9
6
3
5
11

Артикул

Название

Примечание

Количество

1

48031663

BLOCK

Poly

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Included in Upper Assembly

1шт.

3

NSS

NOT SOLD SEPARAT

Bolt, Included in Upper Assembly

1шт.

4

48031668

CUTTING EDGE

30"

1шт.

5

NSS

NOT SOLD SEPARAT

Plow, Included in Upper Assembly

1шт.

6

NSS

NOT SOLD SEPARAT

Bracket, Included in Upper Assembly

1шт.

7

NSS

NOT SOLD SEPARAT

Center Bracket, Included in Upper Assembly

1шт.

8

NSS

NOT SOLD SEPARAT

Lower Bracket, Included in Upper Assembly

1шт.

9

48031673

PIN

Mounting

1шт.

10

48031682

SHOE

LH

1шт.

11

48031680

SHOE

RH

1шт.

Выбрано товаров: 11
