Запчасти Case TV380 (95.024.CAB) - COLD PLANERS, STANDARD FLOW, TV380 (95) - CE ATTACHMENTS

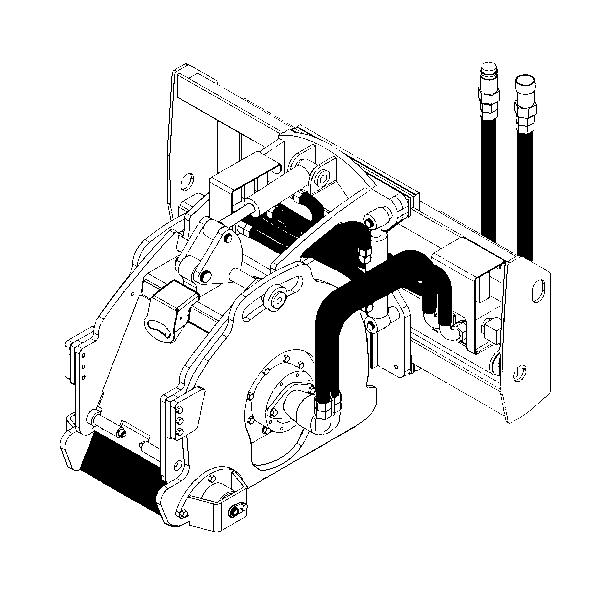

Схема запчастей Case TV380 - (95.024.CAB) - COLD PLANERS, STANDARD FLOW, TV380 (95) - CE ATTACHMENTS

Артикул

Название

Примечание

Количество

1

87048530

ATTACHMENT

Cold Planer SP12M, 12'' Manual Controls, Incl Drum, Manual Depth and Tilt, Hydraulic Sideshift, Hoses, Fittings and Quick Couplers, Fully Hydraulic Controls are Opt

1шт.

Std Boom Hydraulics, 12 - 22 GPM, Std Flow Reqd

1шт.

Model Compatibility: SR130, SR150, SR160, SR175, SV185, SR200, SR210, SR220, SV250, SR250, SV300, TR270, TR320, TV380, 410, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT, 445CT, 450CT

1шт.

2

87048531

ATTACHMENT

Cold Planer SP12H, 12'' W/ Hydraulic Controls, Incl Drum, Manual Depth and Tilt, Hydraulic Sideshift, Hoses, Fittings and Quick Couplers, Fully Hydraulic Controls are Opt

1шт.

Std Boom Hydraulics, 12 - 22 GPM, Std Flow and Front Elec are Reqd

1шт.

Model Compatibility: SR175, SV185, SR200, SR210, SR220, SV250, SR250, SV300, TR270, TR320, TV380, 410, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT, 445CT, 450CT

1шт.

3

87045458

ATTACHMENT

2.5'' Slot Cutting Drum for SP12, Order as Needed

1шт.

4

87045462

ATTACHMENT

Water Nozzle Kit, Incl 3 Spray Nozzles, Tubing and Fitting to Reach Coupler on Loader Boom for SP12 - HP30, Order as Needed

1шт.

5

87048529

ADAPTER

Wire Harness, Aadapts Pre 9/1/2001 75XT, 85XT, 90XT, 95XT W/ 8 Pin Connector to 14 Pin Connector, Order as Needed

1шт.

Выбрано товаров: 9
