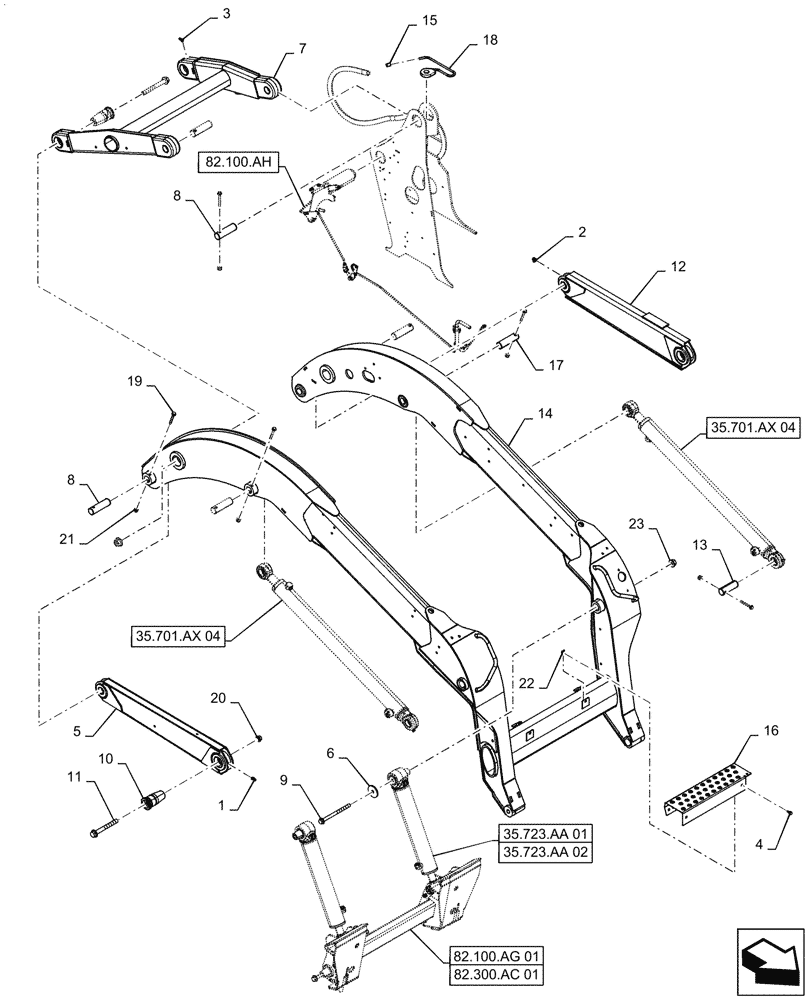

Запчасти Case TV380 (84.910.AA) - LOADER ARM (SV300,TV380) (84) - BOOMS, DIPPERS & BUCKETS

1

87414

LUBE NIPPLE,1/4" - 28

4шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

3

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

47372604

CONNECTING LINK

RH Lower, Gray

1шт.

6

47477571

WASHER

2шт.

7

84593067

LINK

H, Gray, Years: -30-JUL-13

1шт.

7

47502239

LINK

H, Gray, Start Year: 31-JUL-13

1шт.

8

84201510

PIN,38.15mm OD x 146mm L

Boom to Lift Cylinder

4шт.

9

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

10

84239550

PIN,60.32mm OD x 126.5mm L

4шт.

11

84246761

FLANGE BOLT,Hvy Hex, M20 x 170mm, Cl 10.9

4шт.

12

84270979

LIFT LINK

LH Lower, Gray

1шт.

13

84280377

PIN,38.15mm OD x 98mm L

Chassis to Lift Cylinder

2шт.

14

48007306

KIT

Boom Assembly, Power Tan, Incl Decals & Instructions

1шт.

Boom To Coupler Hub Is 84577922

1шт.

15

84366057

CAP,7.92mm ID x 10.66mm OD x 12.7mm L

Vinyl

2шт.

16

84377147

STEP

Loader, Tan

1шт.

17

84423056

PIN,38.15mm OD x 133.3mm L

Boom to Lift Cylinder

2шт.

18

84519586

GUIDE

Hose Loop

2шт.

19

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

8шт.

20

86512499

FLANGE NUT,M20 x 2.5, Cl 10

4шт.

21

86512554

NUT,M10 x 1.5, Cl 10

8шт.

22

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

23

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.
