Запчасти Case TV380 (82.100.02) - BUCKET, LOW PROFILE/EXTENDED LOW PROFILE (82) - FRONT LOADER & BUCKET

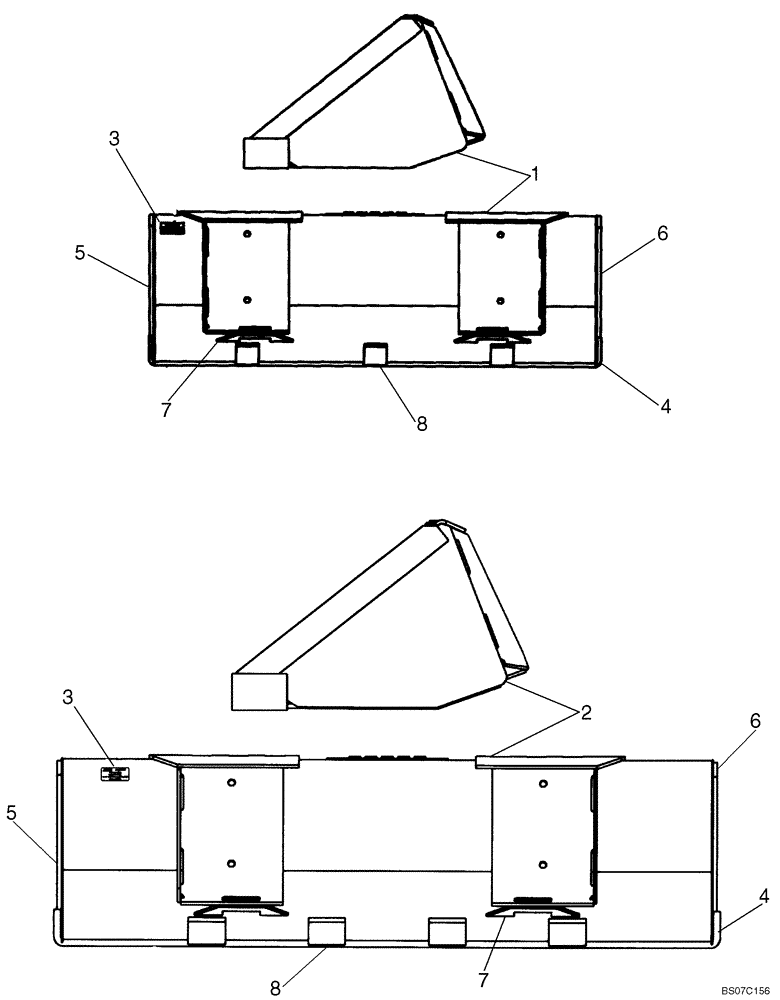

Схема запчастей Case TV380 - (82.100.02) - BUCKET, LOW PROFILE/EXTENDED LOW PROFILE (82) - FRONT LOADER & BUCKET
5
6
3
7
8
6
5
4
7
1
8
3
4

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LOW PROFILE, EXTENDED LOW PROFILE

1шт.

1

84538051

BUCKET

Low Profile; 72 Inch; Order From Machinery Price List; Incl 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Decal

1шт.

4

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

Weld On Blade

1шт.

5

9829784

CUTTING EDGE

Cutter Left Hand

1шт.

6

9829783

CUTTING EDGE

Cutter Right Hand

1шт.

7

9822175

PLATE

2шт.

8

9829786

BAR

Skid

4шт.

2a

86590381

BUCKET

Extended Low Profile; 72 Inch; Order From Machinery Price List; Incl 3A - 8A

1шт.

3a

NSS

NOT SOLD SEPARAT

Decal

1шт.

4a

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

Weld On Blade

1шт.

5a

86510316

CUTTING EDGE

Cutter Left Hand

1шт.

6a

86510315

CUTTING EDGE

Cutter Right Hand

1шт.

7a

9822175

PLATE

2шт.

8a

86510314

BAR

Skid

3шт.

2b

86590383

BUCKET

Extended Low Profile; 78 Inch; Order From Machinery Price List; Incl 3B - 8B

1шт.

3b

NSS

NOT SOLD SEPARAT

Decal

1шт.

4b

86577170

CUTTING EDGE,Weld On, 9 Hole, 152.4mm W x 1978.2mm L

Weld On Blade

1шт.

5b

86510316

CUTTING EDGE

Cutter Left Hand

1шт.

6b

86510315

CUTTING EDGE

Cutter Right Hand

1шт.

7b

9822175

PLATE

2шт.

8b

86510314

BAR

Skid

4шт.

2c

86590386

BUCKET

Extended Low Profile; 84 Inch; Order From Machinery Price List; Incl 3C - 8C

1шт.

3c

NSS

NOT SOLD SEPARAT

Decal

1шт.

4c

86577172

CUTTING EDGE,Weld On, 9 Hole, 203.2mm W x 2130.6mm L

Weld On Blade

1шт.

5c

86510316

CUTTING EDGE

Cutter Left Hand

1шт.

6c

86510315

CUTTING EDGE

Cutter Right Hand

1шт.

7c

9822175

PLATE

2шт.

8c

86554088

BAR

SKid Bar

5шт.

Выбрано товаров: 29
