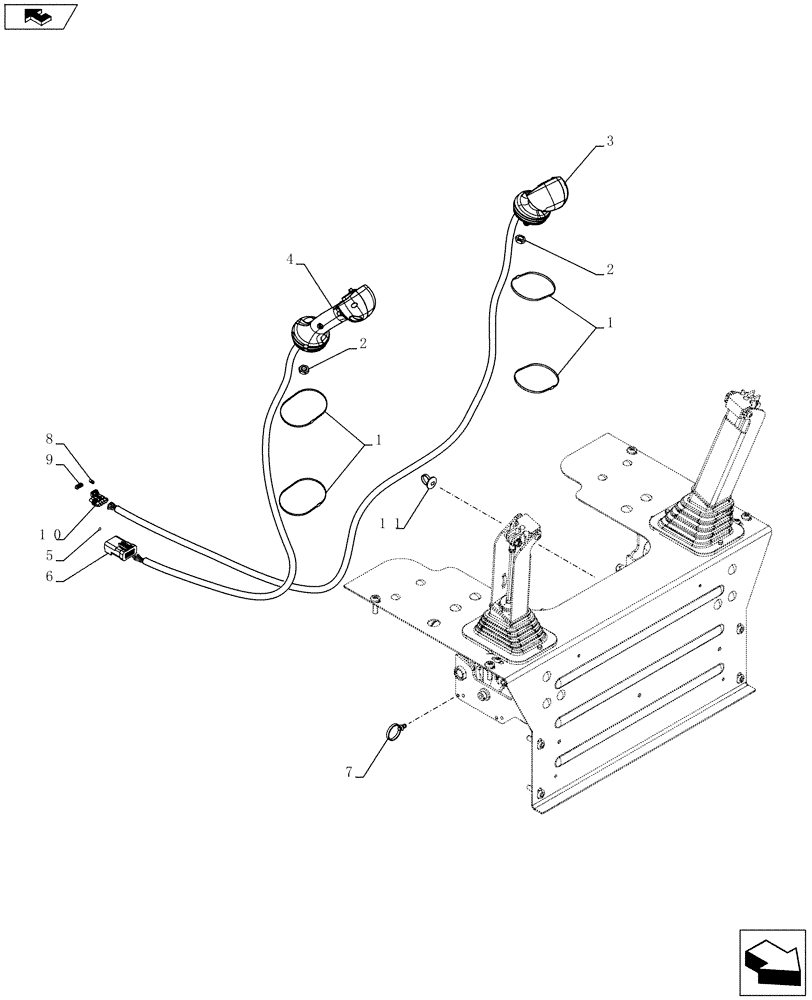

Запчасти Case TV380 (55.512.CL[04]) - LEVEL 100 HANDLE GRIPS, 1-SPEED MECHANICAL CONTROLS (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

4шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

84201270

HANDLE GRIP

Case Level 100 LH

1шт.

4

84201273

HANDLE GRIP

Case Level 100 RH, Includes Ref. 12 & 13

1шт.

5

84279937

PLUG,Apex, 2.80mm

Cavity Plug Apex 2.8MM

5шт.

6

87382923

ELEC CONNECTOR,Male, 10 Cavities

FCI Apex 2.8MM 10-Way Tab HSG

1шт.

7

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

5шт.

8

87689636

PLUG,Red, Taxi Seal Connector Cavity

Dark Red Cable Cavity Plug

2шт.

9

87689643

CLIP,4.8mm ID

Black Secondary Lock

1шт.

10

87697724

ELEC CONNECTOR,Female, 4 Cavities

Packard Metri-Pack 150 4-Way Female

1шт.

11

378884A2

STRAP,254mm L

Panel Wire Tie

3шт.

12

84296544

SWITCH

Auxiliary Hydraulic Proportional

1шт.

13

87630127

SWITCH

Parking Brake

1шт.

14

84296542

SWITCH ASSY

Horn

1шт.
