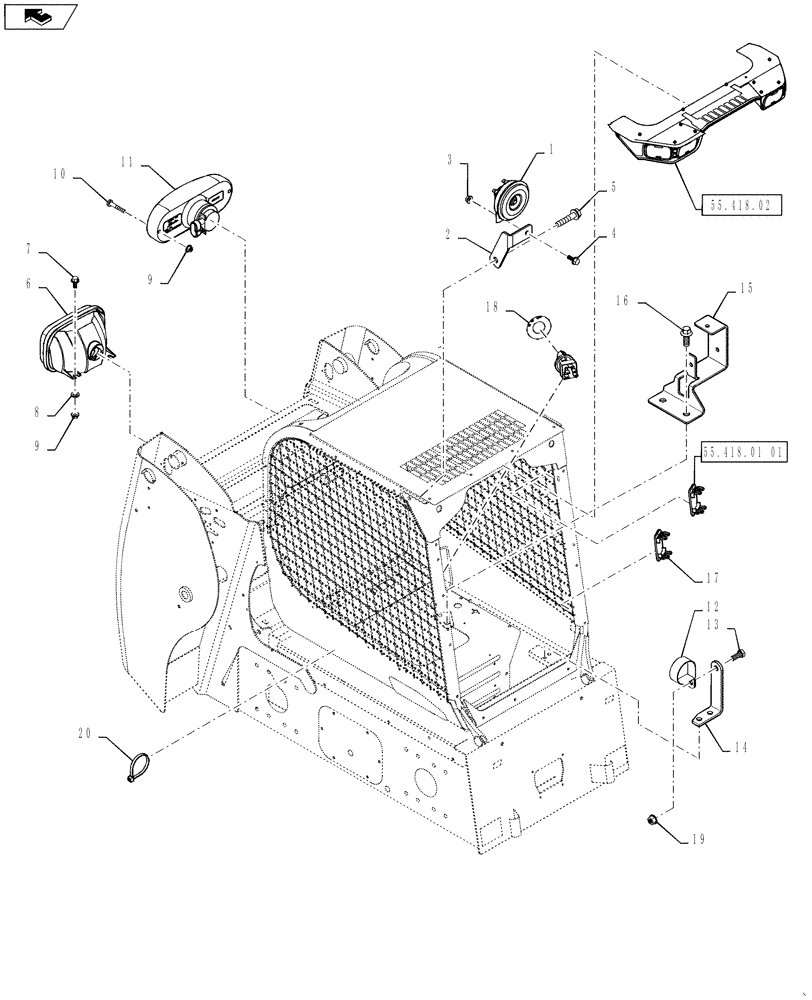

Запчасти Case TV380 (55.418.01) - WORKLIGHTS, HORN AND RELATED PARTS (SV300,TV380) (55) - ELECTRICAL SYSTEMS

1

87714969

HORN

W/Breather

1шт.

2

84331854

BRACKET, SUPPORTING

Horn, Mounting

1шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

5

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

6

84306337

WORK LAMP,12V, 37.5W, Clear

Uses 9847313 Bulb

2шт.

7

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

9

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

10

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

4шт.

11

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop - Incand., Uses 87642985 Bulb

2шт.

12

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

14

84323563

ANGLE

Hood Lock Tab

1шт.

15

84296194

BRACKET, SUPPORTING

FCI Connector Support, Upper

1шт.

15

84296250

BRACKET, SUPPORTING

FCI Connector Support, Lower

1шт.

16

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

2шт.

17

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1шт.

18

84412290

DECAL

Light Switch Wheat

1шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

10шт.

21

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

(Not Shown)

1шт.

22

87030561

NUT,M6 x 1, Cl 8

(Not Shown)

1шт.

23

86625264

LOCK WASHER,Ext Tooth, M5

Used to mount Ref. 12 (Not Shown)

4шт.
