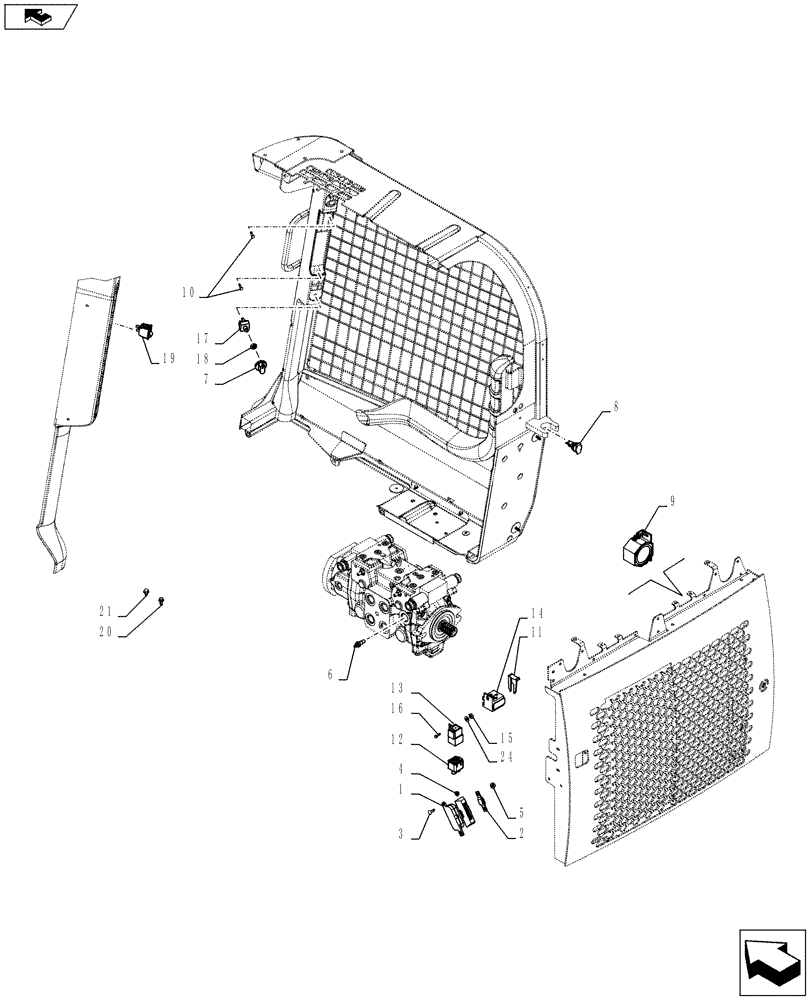

Запчасти Case TV380 (55.418.01[01]) - COMMON INSTRUMENTS AND ELEC (ALL CASE) (55) - ELECTRICAL SYSTEMS

1

440038A1

JUNCTION BLOCK

Fuse Block

1шт.

2

87472238

FUSE,60A, Blade

60 Amp

1шт.

3

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

87688409

TEMPERATURE SENDER,M10 x 1.0

Hydraulic

1шт.

7

86729670

KNOB

1шт.

8

82002966

POWER SOCKET,M18 x 1

1шт.

9

325258A1

ALARM

Backup Alarm Assembly

1шт.

10

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

2шт.

11

84352550

ELEC CONNECTOR

1шт.

12

84359805

ELEC CONNECTOR

Relay Socket 8W

1шт.

13

84297432

RELAY,12V, 70A

1шт.

14

NSS

NOT SOLD SEPARAT

Packard Metri-Pack Female 5-Way

1шт.

15

87825

NUT,#10-32

1шт.

16

87308282

SCREW,HWH, #10 - 32 x 3/4"

1шт.

17

47376503

ROTARY SWITCH

Blower/Light

1шт.

18

87310592

JAM NUT,7/16" - 28, Gr 5

1шт.

19

133714A1

BEACON SWITCH

Rocker, Beacon

1шт.

19

84388282

INDICATOR

High Speed

1шт.

19

87634134

SWITCH

On/Off Rocker, Multifunction Aux

1шт.

20

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

1шт.

21

380426

SCREW,Flng, M6 x 10mm

1шт.

22

84360112

BRACKET

EST Diagnostic (Not Shown)

1шт.

23

84409478

DECAL

LH Post Console (Not Shown)

1шт.

24

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

25

121573A1

REFLECTOR,94mm L X 44mm W

Red, 2 Per Box (Not Shown)

1шт.

26

774735

DIODE,6A

Door Interlock Jumper (Not Shown)

1шт.

27

L71879

DIODE ELEMENT,400V, 3A

Polarity Protection (Not Shown)

1шт.

28

87716447

ELEC CONNECTOR

Cab Door Jumper (Not Shown)

1шт.
