Запчасти Case TV380 (35.730.01) - HYDRAULIC LIFT CYLINDER, RH (SV300,TV380) BEFORE JULY 31, 2013 (35) - HYDRAULIC SYSTEMS

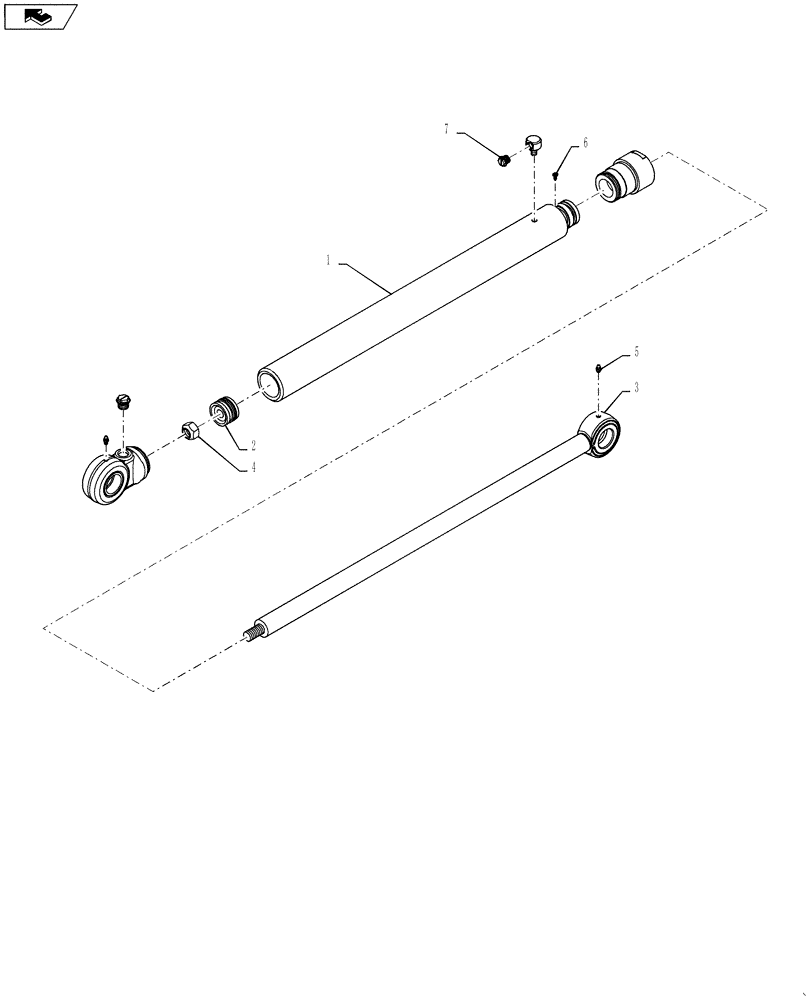

Схема запчастей Case TV380 - (35.730.01) - HYDRAULIC LIFT CYLINDER, RH (SV300,TV380) BEFORE JULY 31, 2013 (35) - HYDRAULIC SYSTEMS
7
5
home
3
1
2
4
6

Артикул

Название

Примечание

Количество

-

84558166

CYLINDER,Double Acting, 50.8mm Rod, 886.5mm Stroke

Hydraulic, RH Lift, 69.9 X 50.8, Incl. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, W, RH

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Piston-Gland

1шт.

3

84558175

PISTON ROD

W

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16

2шт.

8

84530079

SERVICE KIT

(Not Shown) Cylinder Repair Kit

1шт.

Выбрано товаров: 9
