Запчасти Case TV380 (35.701.01[03]) - BUCKET TIP LINES, HP HIGH FLOW 2ND, 02-MAY-2016 AND AFTER (35) - HYDRAULIC SYSTEMS

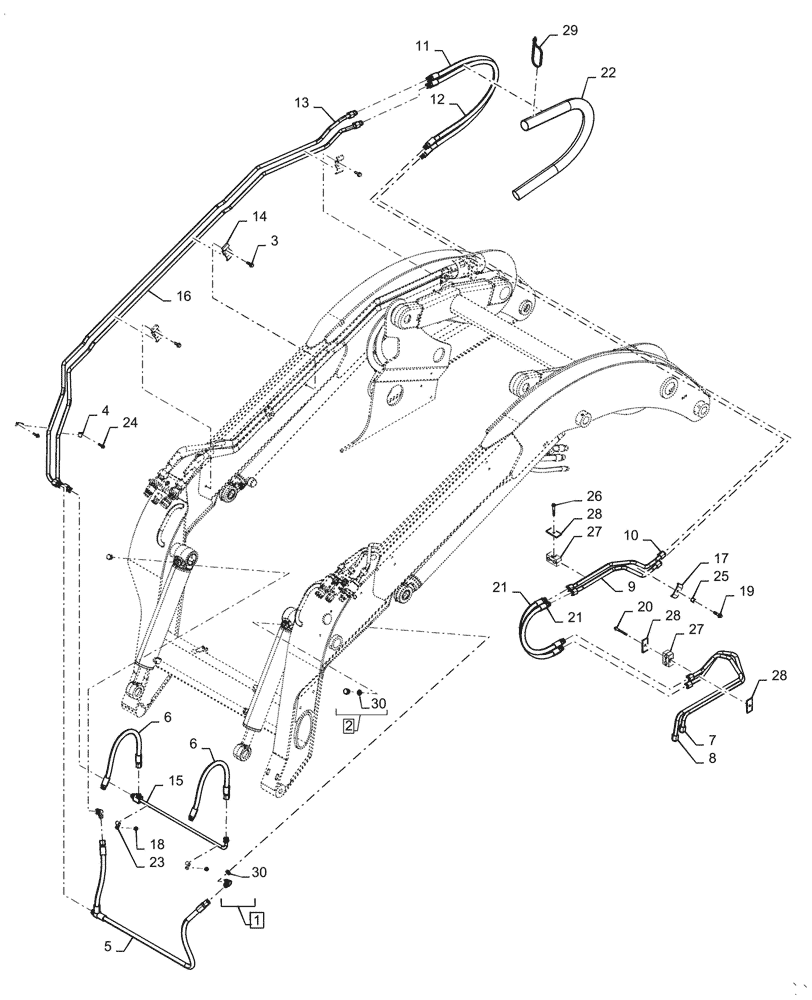

Схема запчастей Case TV380 - (35.701.01[03]) - BUCKET TIP LINES, HP HIGH FLOW 2ND, 02-MAY-2016 AND AFTER (35) - HYDRAULIC SYSTEMS
12
25
26
10
23
18
21
30
21
19
22
5
8
6
6
27
27
3
11
24
16
29
14
28
1
30
9
15
17
28
2
4
20
7
28
13

Артикул

Название

Примечание

Количество

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 30

2шт.

2

214389

PLUG,3/4" - 16 ORB

Incl 30

2шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

4

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

5

47505800

HOSE,12.5mm ID, SAE 100R17

Tip Cyl Base

1шт.

6

47505812

HOSE,12.5mm ID x 593mm L, SAE 100R16

Tip Cyl

2шт.

7

47560315

TUBE

Tip, RH Tower

1шт.

8

47560318

TUBE

Tip, RH Tower

1шт.

9

47746970

HYD TUBE

Tip Cyl Lower Link

1шт.

10

47746974

HYD TUBE

Tip Cyl Lower Link

1шт.

11

47887632

HOSE,12.5mm ID x 981mm L, SAE 100R16

1шт.

12

47887633

HOSE,12.5mm ID x 921mm L, SAE 100R16

1шт.

13

47910907

HYD TUBE

Tip Cyl Arm

1шт.

14

48006923

CLAMP

Butterfly, 3 Tube

3шт.

15

48024921

HYD TUBE

Tip Crossover

1шт.

16

48047905

HYD TUBE

Tip Cyl Arm

1шт.

17

84254045

CLAMP,66mm L

1шт.

18

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

19

84285342

SELF-TAP SCREW,Hex Flng Hd, M10 x 1.5 x 35mm

1шт.

20

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

1шт.

21

84356593

HYDRAULIC HOSE,12.7mm ID x 561mm L, SAE 100R16

2шт.

22

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

1шт.

23

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

24

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

25

87340800

SPACER,5/8" Tube x 15.88mm

1шт.

26

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

1шт.

27

1546026C1

CLAMP

Hydraulic Tube

2шт.

28

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

3шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

Выбрано товаров: 30
