Запчасти Case TV380 (35.220.01[05]) - DRAIN LINE, HYDRAULIC (35) - HYDRAULIC SYSTEMS

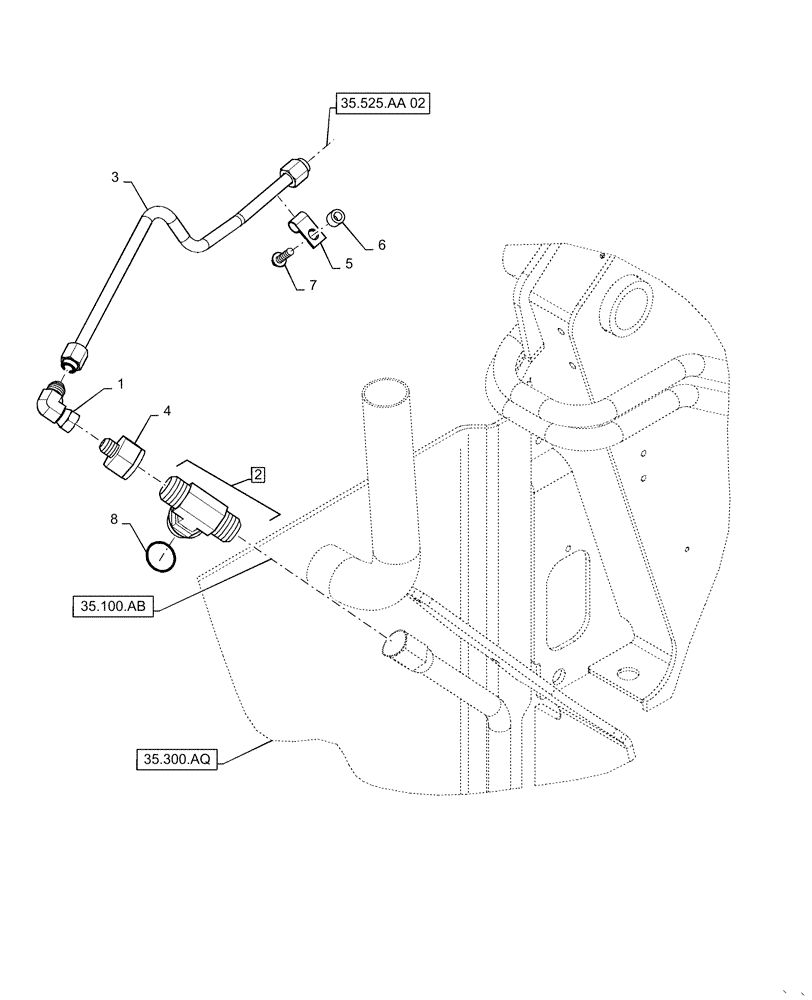

Схема запчастей Case TV380 - (35.220.01[05]) - DRAIN LINE, HYDRAULIC (35) - HYDRAULIC SYSTEMS
35.300.aq
2
3
4
8
6
7
5
1
35.525.aa 02
35.100.ab

Артикул

Название

Примечание

Количество

1

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

2

9618949

TEE,37 Degree -16 x -16 ORB Branch x 37 Degree -16

Incl 8

1шт.

3

47662418

HYD TUBE

12.7mm OD

1шт.

4

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

1шт.

5

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

6

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

7

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

1шт.

8

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Выбрано товаров: 8
