Запчасти Case TV380 (10.304.AL[01]) - REMOTE OIL, LINE - BEFORE 14/9/2014 (SR200-TV380) (10) - ENGINE

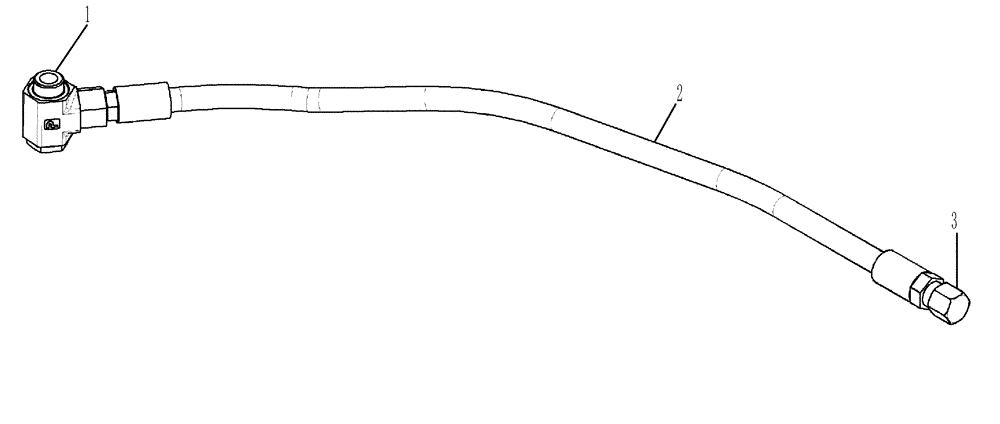

Схема запчастей Case TV380 - (10.304.AL[01]) - REMOTE OIL, LINE - BEFORE 14/9/2014 (SR200-TV380) (10) - ENGINE
3
2
1

Артикул

Название

Примечание

Количество

1

87742610

FITTING,M22 x 1.5

Oil Pan, Incl 4, 5

1шт.

Includes Banjo Bolt, NSS

1шт.

2

84201423

HOSE,12.7mm ID x 825mm L, SAE 100R16

Remote Oil Drain

1шт.

3

262159

CAP,3/4" - 16 Fem JIC

1шт.

4

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

5

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

Выбрано товаров: 6
