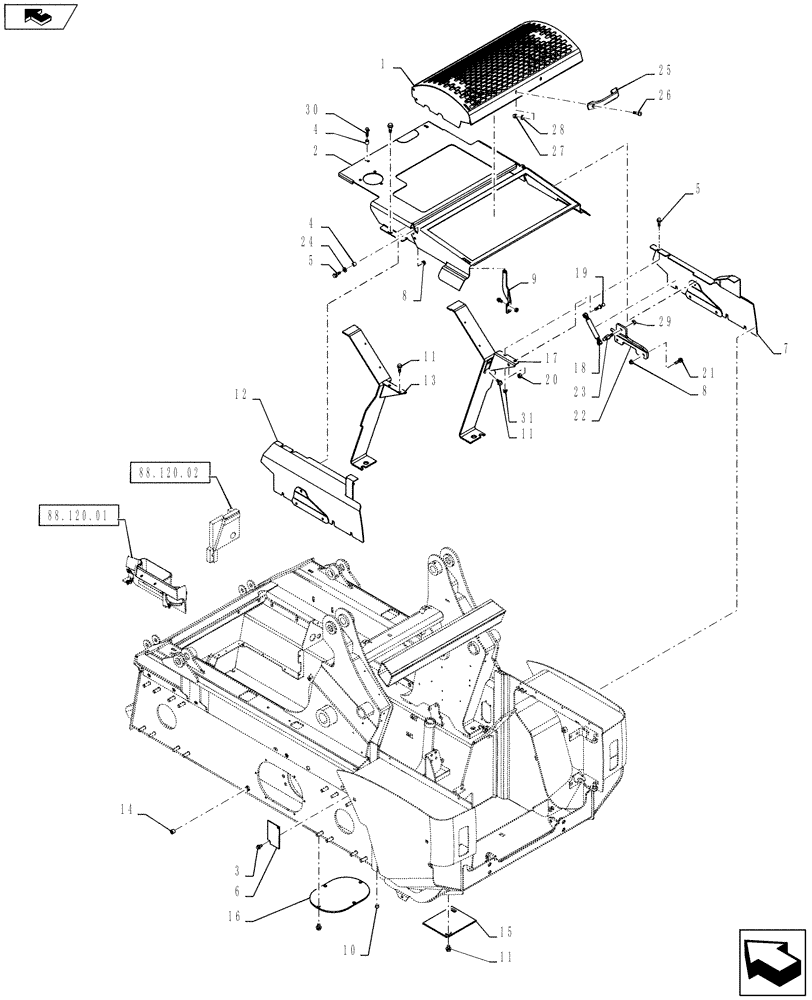

Запчасти Case TV380 (90.100.AU) - HOODS AND COVERS (TV380) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84423420

HOOD

Tilt, Gray

1шт.

2

84303513

PANEL

Rear Deck, Gray

1шт.

3

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

M8 X 15

6шт.

4

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

5

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

6

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

Cover, CE Gray

2шт.

7

84361705

PANEL

RH Cover Tan

1шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

84317996

LOCKING TAB

Hood Lock Tab

1шт.

10

236622

PLUG,3/8" - 18 NPT

Pipe

2шт.

11

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

14шт.

12

84361709

PANEL

LH, Cover Tan

1шт.

13

84281047

MOUNTING PLATE

Cover Mounting Gray

1шт.

14

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

Pipe

2шт.

15

84299809

COVER PLATE

Plumbing Access Cover

1шт.

16

84299800

COVER PLATE

Cover Gray

1шт.

17

84281046

MOUNTING PLATE

Cover Mounting Gray

1шт.

18

400472A1

SPRING,10mm Rod, 38.1mm Stroke

Hood Assist

1шт.

19

189609A1

BALL STUD,M8 x 1.25

1шт.

20

43362

NUT,M8 x 1.25, Cl 10

1шт.

21

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

22

84551697

BRACKET

Gas Strut Support Gray

1шт.

23

109498A1

STUD

Ball

1шт.

24

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

25

406256A1

HANDLE

Rear Hood

1шт.

26

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

27

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

28

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

1шт.

30

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

31

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.
