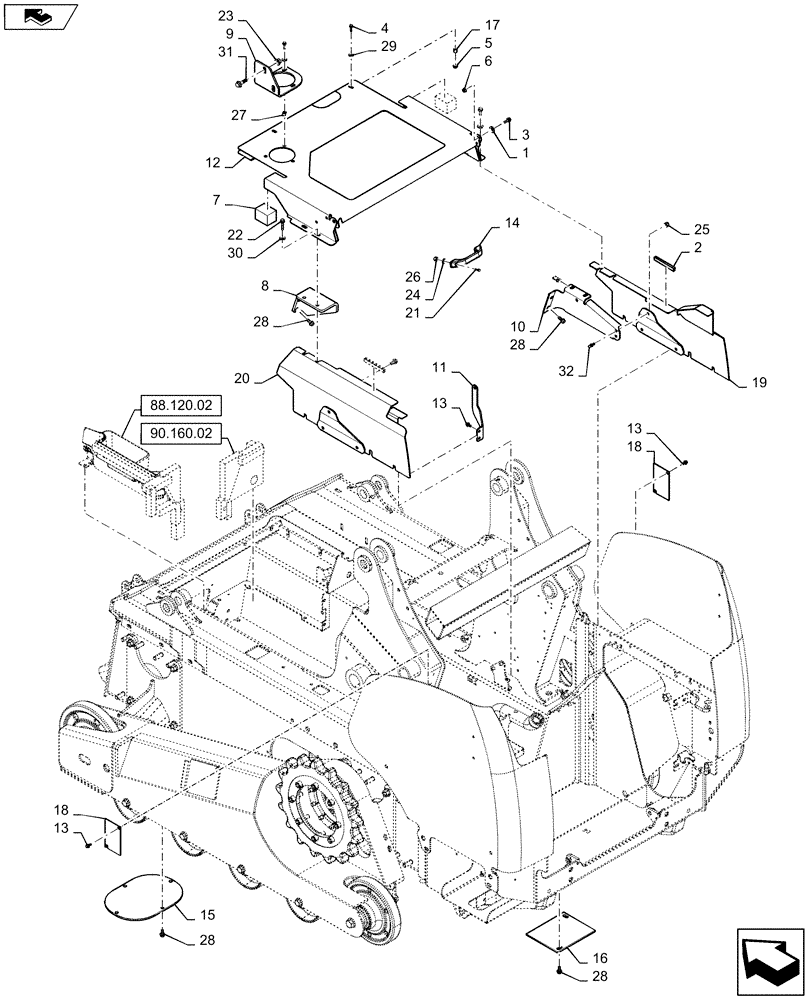

Запчасти Case TV380 (90.100.AU) - HOODS AND COVERS (TV380) AFTER APRIL 15, 2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

2

291186

PROTECTION STRIP,9.9mm W

1шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

4

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

7

47357144

FOAM INSULATION,70mm L x 50.8mm W x 50.8mm H

2шт.

8

47430921

PLATE

1шт.

9

47432047

PLATE

Exhaust Stack

1шт.

10

47447666

ANGLE

Angle, Cover Mounting

1шт.

11

47498985

ANGLE

Angle, Hood Lock Tab

1шт.

12

47553252

PANEL

Panel, Rear Deck

1шт.

13

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

14

406256A1

HANDLE

Rear Hood

1шт.

15

84299800

COVER PLATE

Cover Gray

1шт.

16

84299809

COVER PLATE

Plumbing Access

1шт.

17

254697A1

SPACER

2шт.

18

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

2шт.

19

84601861

PANEL

Cover, RH

1шт.

20

84601863

PANEL

Cover, LH

1шт.

21

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

22

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

23

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

24

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

25

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

26

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

27

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

5шт.

28

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

14шт.

29

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

30

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

31

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

32

189609A1

BALL STUD,M8 x 1.25

2шт.
