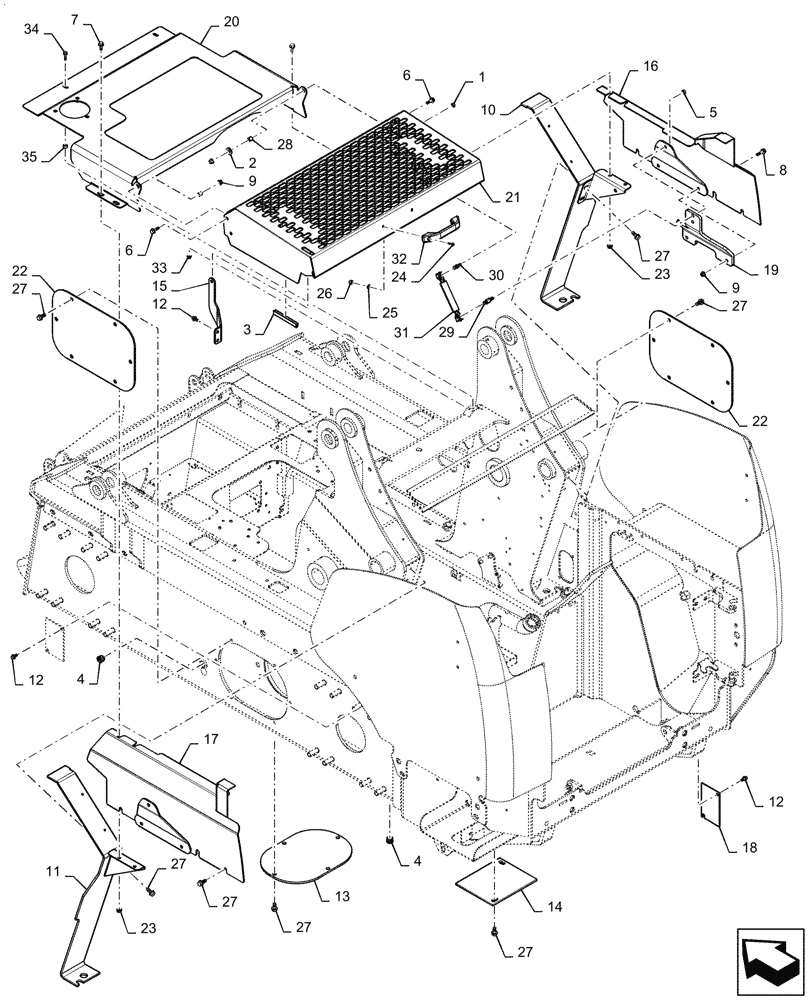

Запчасти Case TV380 (90.100.AU[01]) - HOODS AND COVERS (18-JAN-2012 AND AFTER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

43362

NUT,M8 x 1.25, Cl 10

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

3

291186

PROTECTION STRIP,9.9mm W

Cut to Length, .72' L

1шт.

4

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

1шт.

6

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

10

84281046

MOUNTING PLATE

Angle Cover

1шт.

11

84281047

MOUNTING PLATE

Angle Cover

1шт.

12

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

13

84299800

COVER PLATE

Lower Chassis Access, Gray

1шт.

14

84299809

COVER PLATE

Plumbing Access, Power Tan

1шт.

15

84317996

LOCKING TAB

Hood

1шт.

16

84521030

PANEL

RH, Cover

1шт.

17

84361709

PANEL

LH, Cover

1шт.

18

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

2шт.

19

84551697

BRACKET

Gas Strut Support

1шт.

20

84548708

PANEL

Rear Deck

1шт.

21

84559843

HOOD

Tilt, Gray

1шт.

22

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

23

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

24

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

25

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

26

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

27

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

26шт.

28

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

29

109498A1

STUD

Ball, 5/16" - 18

1шт.

30

189609A1

BALL STUD,M8 x 1.25

1шт.

31

400472A1

SPRING,10mm Rod, 38.1mm Stroke

1шт.

32

406256A1

HANDLE

Rear Door

1шт.

33

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

34

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

35

254697A1

SPACER

Pivot Assist Helper Spring

2шт.
