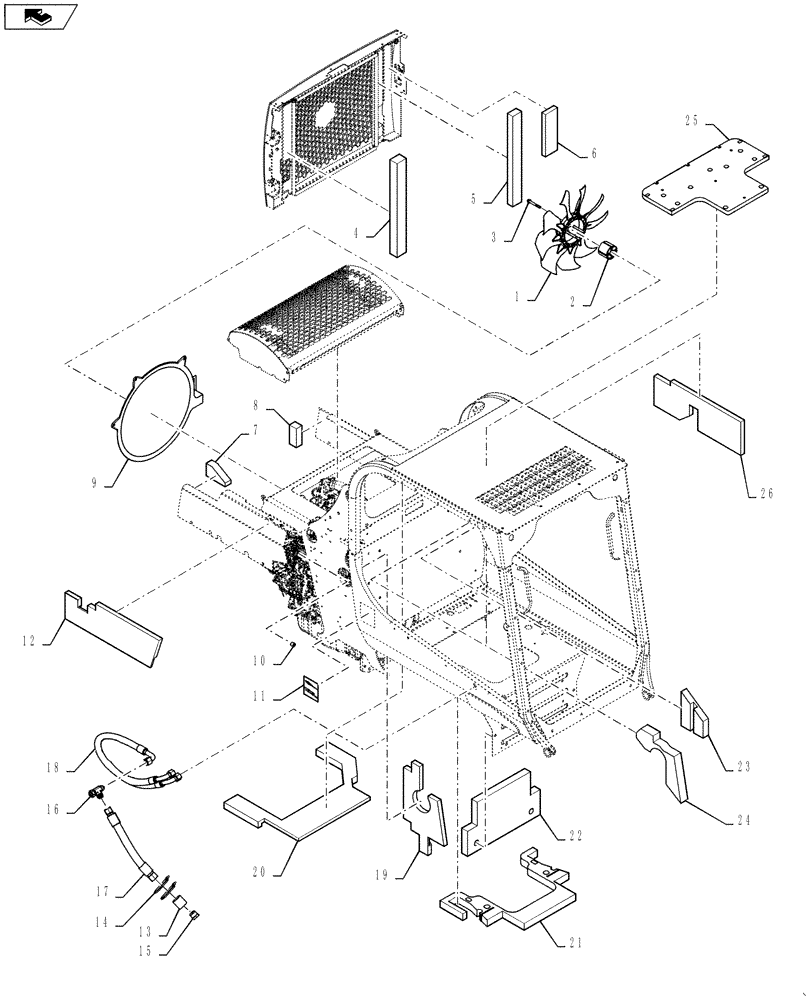

Запчасти Case TV380 (88.100.10[24]) - ENGINE ACCESSORIES OPEN EU (TV380) (88) - ACCESSORIES

1

47488898

FAN,9 Blades, 480mm OD

Clockwise Pusher 480 (NA)

1шт.

2

87565746

SPACER

Chart, Fan

1шт.

3

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

4

84372988

FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk

Fan, RH

1шт.

5

84372981

FOAM INSULATION

Fan

1шт.

6

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan, LH

1шт.

7

84366326

FOAM INSULATION

Chassis, RH

1шт.

8

84366329

FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick

Chassis, LH

1шт.

9

84383957

SHROUD

Metal Insert, Gray

1шт.

10

87461957

STOP

Throttle

1шт.

11

87611184

DECAL,LWA 103, 100mm x 110mm

LWA 103

1шт.

12

84372982

FOAM INSULATION

Tower, RH

1шт.

13

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

Rubber

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

15

9790527

PLUG,1-5/16" - 12 JIC

1шт.

16

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

17

87351645

HOSE ASSY.,417mm L

Resonator

1шт.

18

84383953

HOSE ASSY.

Valve Supply

1шт.

19

84372977

FOAM INSULATION

Tower, RH

1шт.

20

84372980

FOAM INSULATION

Rear Hood

1шт.

21

84366352

FOAM INSULATION

Heal Plate, Vertical

1шт.

22

84366353

FOAM INSULATION

Heal Plate, Horizontal

1шт.

23

84372979

FOAM INSULATION

Tower, RH

1шт.

24

84372978

FOAM INSULATION

Tower, RH

1шт.

25

84372040

FOAM

Seat Pan

1шт.

26

84372983

FOAM INSULATION

Tower, LH

1шт.
