Запчасти Case TV380 (55.518.AT[03]) - WASHER BOTTLE, FRONT & REAR (ALL CASE) (55) - ELECTRICAL SYSTEMS

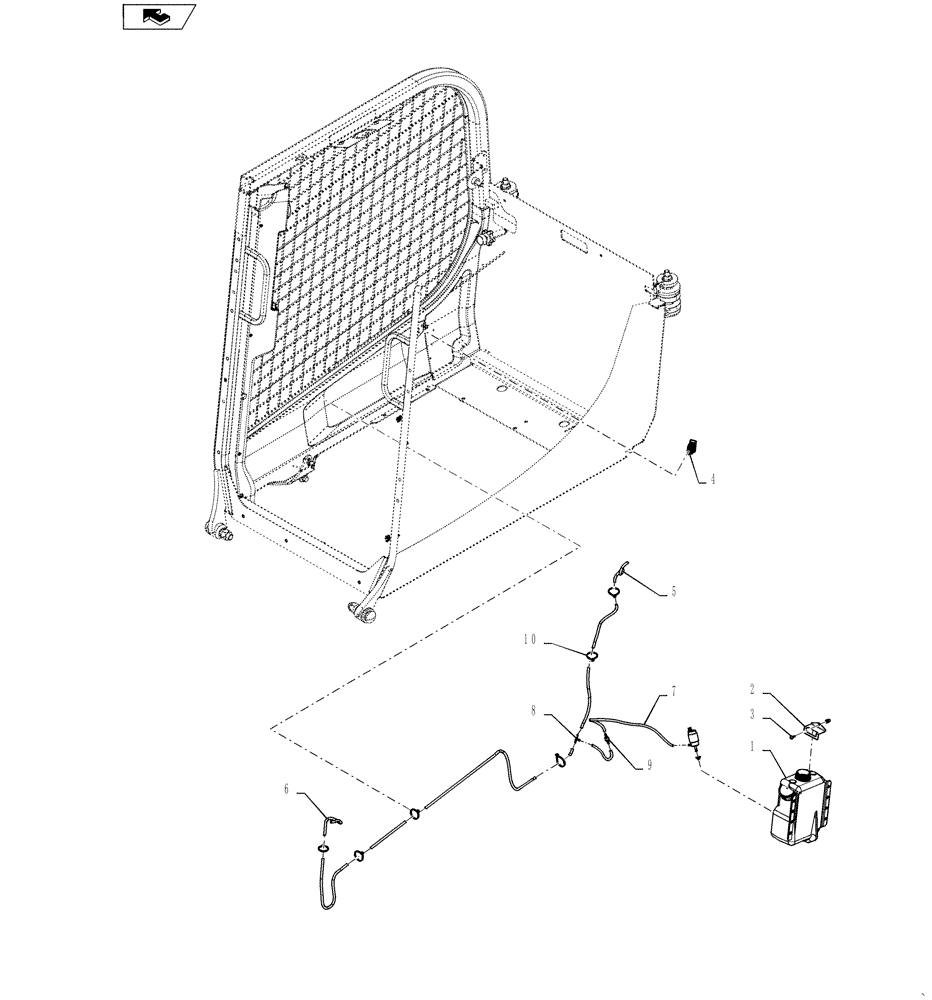

Схема запчастей Case TV380 - (55.518.AT[03]) - WASHER BOTTLE, FRONT & REAR (ALL CASE) (55) - ELECTRICAL SYSTEMS
1
3
home
8
6
5
10
4
2
7
9

Артикул

Название

Примечание

Количество

1

Windshield Washer Bottle Assy, Please See Figure 90.154.05(04) for Breakdown

1шт.

2

84326923

BRACKET

Washer Bottle

2шт.

3

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

M6x16

2шт.

4

87335499

SWITCH

Rocker, Windshield Wiper/Washer

1шт.

5

84281703

HOSE WASHER,4mm ID x 1650mm L, SAE J1037

Windshield Washer, Front Door

1шт.

6

84285452

HOSE WASHER,4mm ID x 672mm L, SAE J1037

Windshield Washer, Rear Window

1шт.

7

84285453

HOSE WASHER

Washer Bottle

2шт.

8

84306335

TEE

Barb Connector

1шт.

9

K307050

VALVE

Non-Return

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

11

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

M6 X 1.0

2шт.

Выбрано товаров: 11
