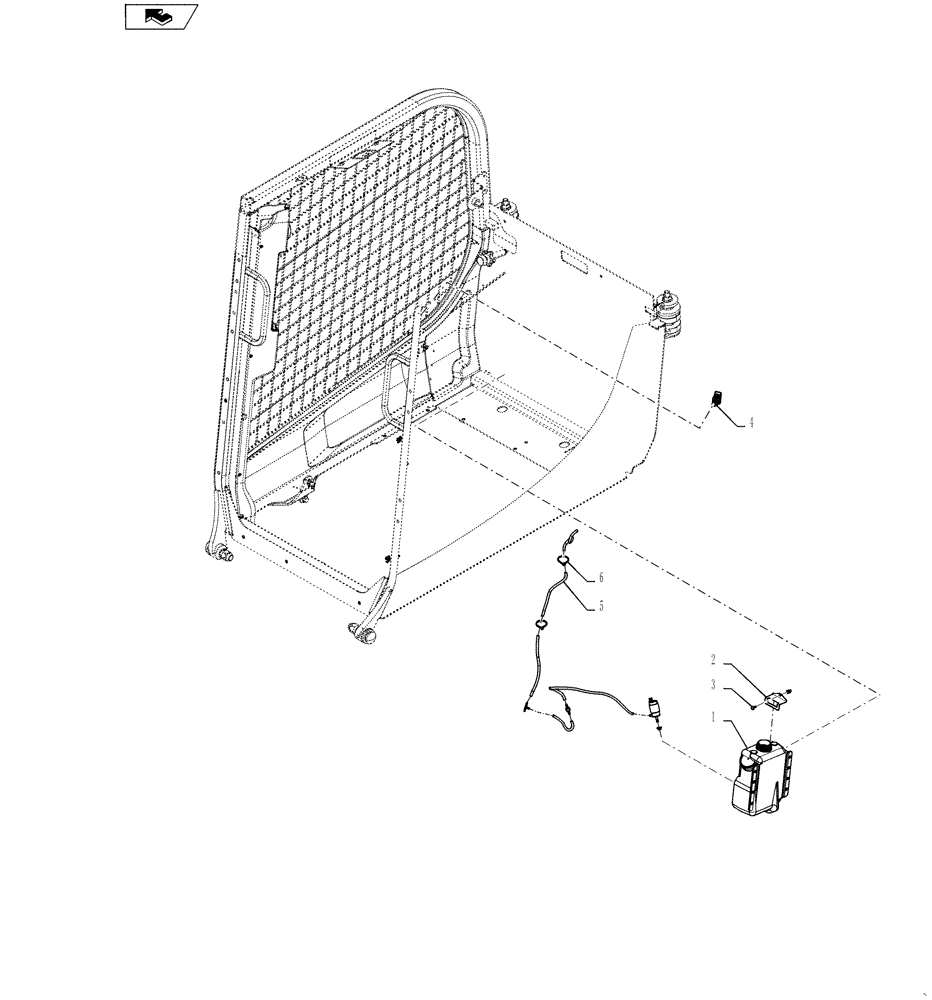

Запчасти Case TV380 (55.518.AT[02]) - WASHER BOTTLE, REAR (ALL CASE) (55) - ELECTRICAL SYSTEMS

1

Windshield Washer Bottle Assy, Please See Figure 90.154.05(04) for Breakdown

1шт.

2

84326923

BRACKET

Washer Bottle

2шт.

3

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

M6x16

2шт.

4

87335499

SWITCH

Rocker, Windshield Wiper/Washer

1шт.

5

84285452

HOSE WASHER,4mm ID x 672mm L, SAE J1037

Washer, Rear Windshield

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

7

84472462

COVER

Rear Cover, Euro, Gray, Not Shown

1шт.

8

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

Nut, M6 X 1.0, Not Shown

2шт.
