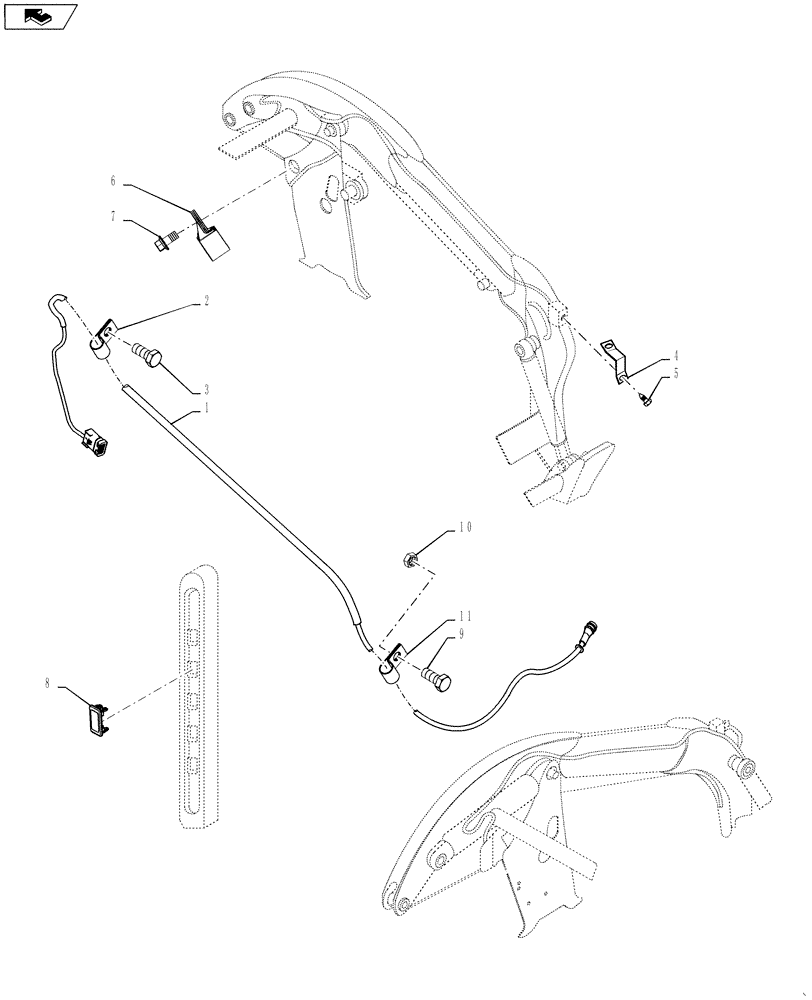

Запчасти Case TV380 (55.512.BW[01]) - MULTIFUNCTION ELECTRICAL (SV185,SV250,SV300,TV380) (55) - ELECTRICAL SYSTEMS

1

84251324

WIRE HARNESS

Front Electrical Boom Vertical

1шт.

2

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

4

84293533

BRACKET, SUPPORTING

Front Aux, Electric

1шт.

5

87030531

SCREW,Hex, M8 x 2.1 x 19mm

ST8 X 19

2шт.

6

86978777

CLAMP,17.5mm, Coat, 7.1mm Bolt Hole, P Type

4шт.

7

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

4шт.

8

87634134

SWITCH

Rocker, On/Off

1шт.

9

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Not Shown

1шт.

10

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Not Shown

1шт.

11

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

Not Shown

2шт.
