Запчасти Case TV380 (55.201.AH) - IGNITION AND DISPLAY, KEYED/KEYLESS CASE (ALL CASE) (55) - ELECTRICAL SYSTEMS

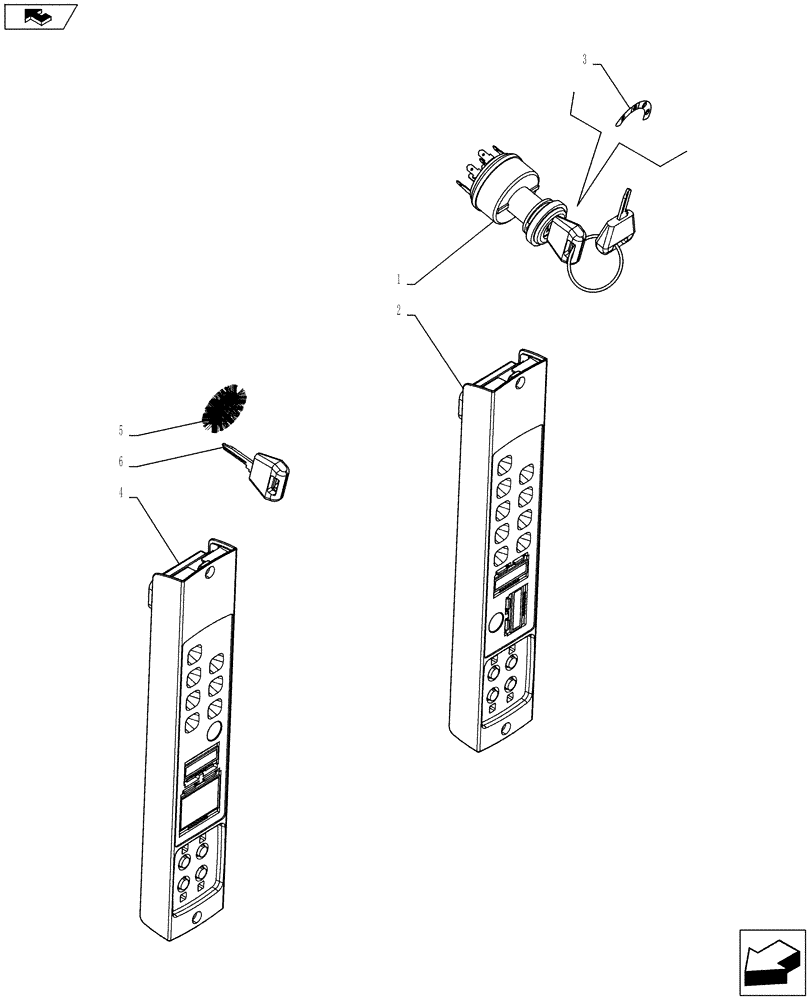

Схема запчастей Case TV380 - (55.201.AH) - IGNITION AND DISPLAY, KEYED/KEYLESS CASE (ALL CASE) (55) - ELECTRICAL SYSTEMS
2
home
4
5
1
3
6

Артикул

Название

Примечание

Количество

1

282775A1

IGNITION SWITCH

W/Padded Key

1шт.

2

84384712

INSTRUMENT CLUSTER

Instrument Cluster, Case Standard

1шт.

84384712R

REMAN-INSTR CLUSTER

SR130, SR150, SR175, SR200, SR220, SR250, SV185, SV250, SV300, TR270, TR320, TV380 ALL (4/11-)

1шт.

84384712C

CORE-CLUSTER, INSTR

Return Number

1шт.

3

84377886

DECAL

Key Switch Case

1шт.

4

84239241

MILES COUNTER DEVICE

Instrument Cluster, Case Deluxe, Keyless

1шт.

84239241R

REMAN-INSTR CLUSTER

SR130, SR150, SR175, SR200, SR220, SR250, SV185, SV250, SV300, TR270, TR320, TV380 ALL SERIES (4/11-)

1шт.

84239241C

CORE-CLUSTER, INSTR

Return Number

1шт.

5

84270680

DECAL

Key Blank

1шт.

6

1964831C2

IGNITION KEY

Padded Case Logo

1шт.

7

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

Instrument Cluster Mounting Screws

2шт.

Выбрано товаров: 11
