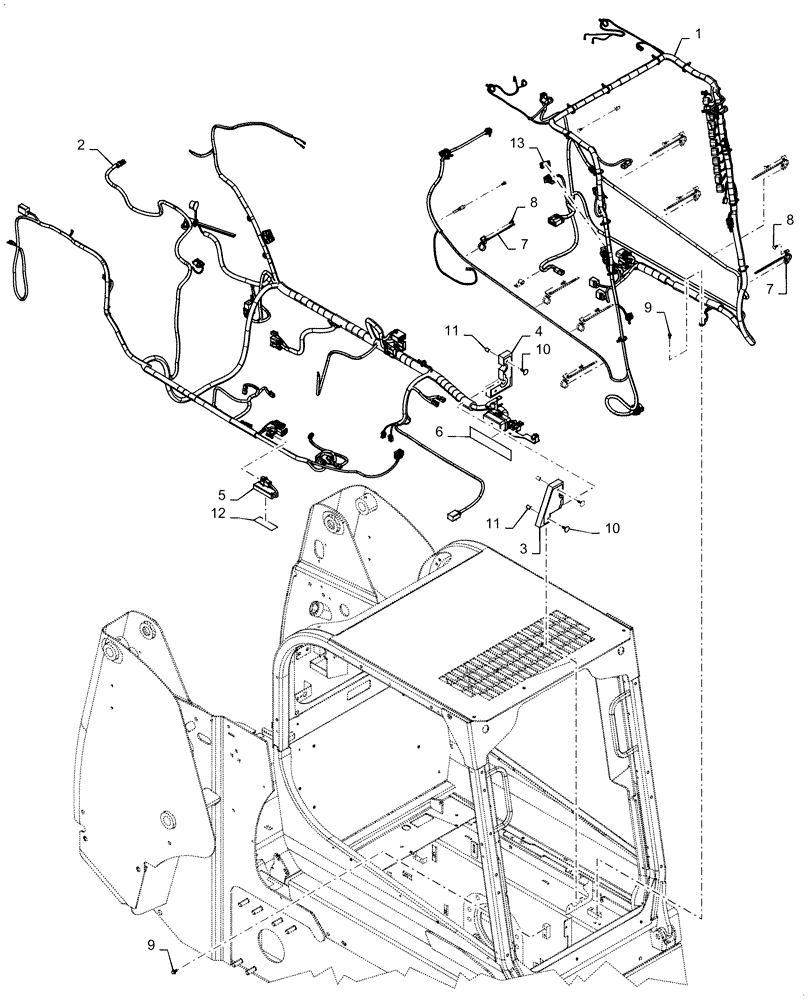

Запчасти Case TV380 (55.101.AC[04]) - ELECTRICAL MECH, LG (SR220-SV300,TR320,TV380) (55) - ELECTRICAL SYSTEMS

1

84426087

WIRE HARNESS

Cab, Mechanical, Years: -14-NOV-12

1шт.

1

47377713

WIRE HARNESS

Cab, Mechanical, Start Year: 15-NOV-12

1шт.

2

84352397

WIRE HARNESS

Chassis, Mechanical, LG, Years: -28-FEB-12

1шт.

2

84544791

WIRE HARNESS

Chassis, Mechanical, LG, Years: 29-FEB-12-15-APR-12

1шт.

2

84605452

WIRE HARNESS

Chassis, Mechanical, LG, Years: 16-APR-12-30-APR-13

1шт.

2

47377778

WIRE HARNESS

Chassis, Mechanical, LG, Years: 01-MAY-13-09-SEP-13

1шт.

2

47523494

WIRE HARNESS

Chassis, Mechanical, LG, Start Year: 10-SEP-13

1шт.

3

84309934

SEAL

Assy, LH, Years: -18-FEB-13

1шт.

3

47535366

SEAL

Assy, LH, Start Year: 19-FEB-13

1шт.

4

84309935

SEAL

Assy, LH, Years: -18-FEB-13

1шт.

4

47535368

SEAL

Assy, LH, Start Year: 19-FEB-13

1шт.

5

84131374

MODULE

Driver, PWM, Prop AUX, Years: -14-NOV-12

1шт.

5

47369995

PROXIMITY SWITCH

Driver, PWM, Prop AUX, Years: 15-NOV-12-17-APR-13

1шт.

5

84131374

MODULE

Driver, PWM, Prop AUX, Start Year: 18-APR-13

1шт.

6

84380451

DECAL

Fuse Box Layout, Mechanical

1шт.

7

84420746

CABLE TIE,403.9mm L, Nylon

Tie

10шт.

8

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

10

86620930

FASTENER,Push-In, 1.10" L, Nylon

4шт.

11

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

12

NSS

NOT SOLD SEPARAT

Double Sided Tape, 125mm W x 3mm Thk x 150mm L

1шт.

13

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

1шт.
