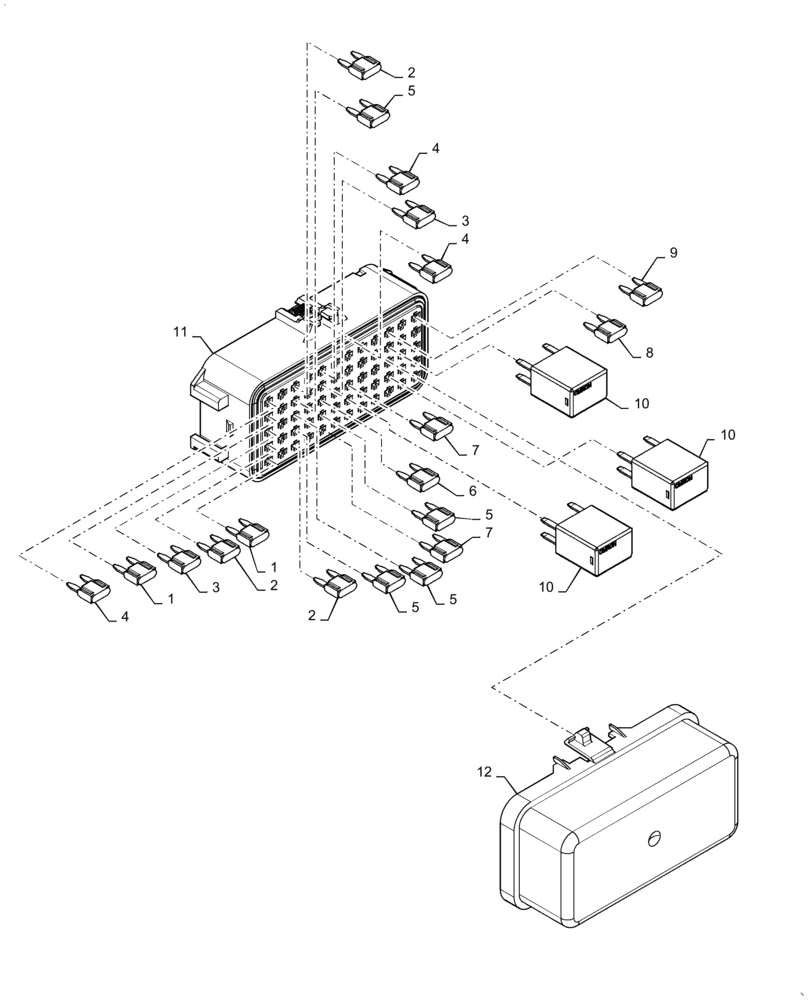

Запчасти Case TV380 (55.100.DO[04]) - FUSE BOX #2, EH (SR175 - SR250, SV250 - TV380) (55) - ELECTRICAL SYSTEMS

1

121411A1

FUSE,7.5A, Mini, Brown

Brake Lamp, Position: (A1, A2)

1шт.

*

Handle Multifunction 1, 2, 3, Position: (D1, D2)

1шт.

2

121850A1

FUSE,3A, Mini, Violet

Park Brake, Position: (A3, A4)

1шт.

*

Proportional Auxillary, Position: (B1, B2)

1шт.

*

2 Speed, Position: (E3, E4)

1шт.

3

121415A1

FUSE,25A, Mini, Clear

Multifunction Key Power, Position: (C1, C2)

1шт.

*

Wiper/Washer, Position: (D5, D6)

1шт.

4

121412A1

FUSE,10A, Mini, Red

Auxillary Electric On/Off, Position: (E1, E2)

1шт.

*

LH Boom Signals, Position: (E5, E6)

1шт.

*

RH Boom Signals, Position: (E7, E8)

1шт.

5

121851A1

FUSE,4A, Mini, Pink

Pump Forward, Position: (B3, B4)

1шт.

*

Loader, Position: (B5, B6)

1шт.

*

Port Pilot Interlock Position: (C3, C4)

1шт.

*

Bucket, Position: (D3, D4)

1шт.

6

121849A1

FUSE,Mini, 2 Amp

Unswitched Battery, Position: (C5, C6)

1шт.

7

121410A1

FUSE,5A, Mini, Tan

Pump Reverse, Position: (A5, A6)

1шт.

*

UNSW B+, Position: (C7, C8)

1шт.

8

121414A1

FUSE,20A, Mini, Yellow

Flasher/Brake Power, Position: (E9, E10)

1шт.

9

121413A1

FUSE,15A, Mini, Blue

High Flow, Position: (E11, E12)

1шт.

10

87655334

RELAY,12V, 35A, Micro

UCM Power, Position: (A7, A9)

1шт.

*

High Flow Power, Position: (A10, A12)

1шт.

*

Front Electric, Position: (C10, C12)

1шт.

11

84255438

FUSE BOX

Connector

1шт.

12

84255450

FUSE BOX

Cover

1шт.
