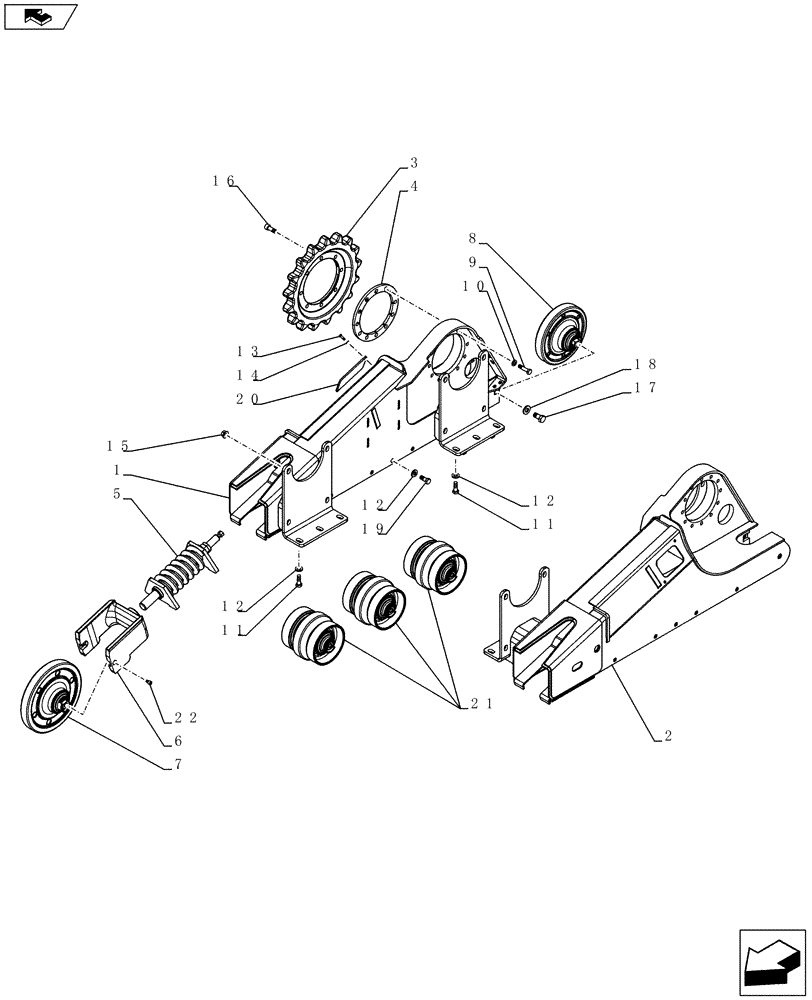

Запчасти Case TV380 (48.138.AB) - UNDERCARRIAGE (TR320,TV380) (48) - TRACKS & TRACK SUSPENSION

1

84268651

FRAME

RH, CE Gray

1шт.

2

84268654

FRAME

LH, CE Gray

1шт.

3

87460888

SPROCKET

17 Tooth

2шт.

4

87583105

SPACER,214mm ID x 280mm OD x 13.25mm Thk

Motor

2шт.

5

87602985

TENSIONER

Cylinder Spring Tensioner, Incl 27 - 30

2шт.

6

87462287

YOKE

Front Idler, Gray

2шт.

7

87480418

FRONT IDLER,350mm OD x 194mm W

2шт.

7

47378990R

REMAN-WHEEL IDLER

2шт.

7

47378990C

CORE-WHEEL IDLER

Return Part Number

2шт.

8

87480413

IDLER,290mm OD x 220mm W

Rear

2шт.

9

11116431

BOLT,Hex, M14 x 2 x 60mm, Cl 10.9

24шт.

10

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

24шт.

11

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

12шт.

12

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

28шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

15

86512498

FLANGE NUT,M16 x 2, Cl 10

16шт.

16

87619750

HEX SOC SCREW,M16 x 2 x 45mm, Cl 12.9

M16 X 45 12.9 ZND

16шт.

17

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

18

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

4шт.

19

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

16шт.

20

87354210

COVER

Plate

2шт.

21

87480419

TRACK ROLLER

8шт.

22

14301821

HEX SOC SCREW,M10 x 16mm, Cl 8.8, Full Thd

4шт.

23

84465143

BRACKET

Track Strut (Not Shown)

2шт.

24

84491873

SHIM,40mm OD x 1.7mm Thk

Track Roller (Not Shown)

8шт.

25

84491877

SHIM,31mm OD x 1.7mm Thk

Track Idler (Not Shown)

4шт.

26

84491878

RETAINER

Track Idler (Not Shown)

4шт.

27

84213764

CAP

Grease Valve, See 5 (Not Shown)

1шт.

28

87602988

ROD

Piston, See 5 (Not Shown)

1шт.

29

87602987

SERVICE KIT

Seal, See 5 (Not Shown)

1шт.

30

87356572

VALVE

Grease, See 5 (Not Shown)

1шт.

31

84465143

BRACKET

Frame (Not Shown)

2шт.
