Запчасти Case TV380 (35.734.AH[03]) - HYDRAULIC COUPLER, CHASSIS PLUMBING (SV185,SV250,SV300,TV380) (35) - HYDRAULIC SYSTEMS

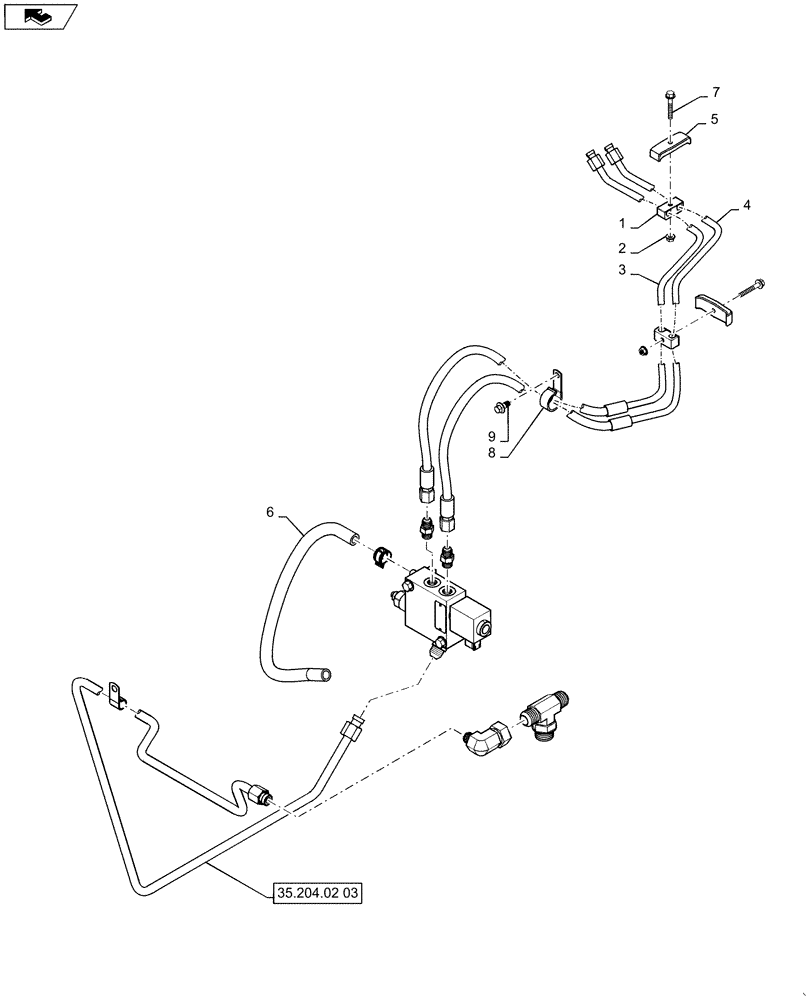

Схема запчастей Case TV380 - (35.734.AH[03]) - HYDRAULIC COUPLER, CHASSIS PLUMBING (SV185,SV250,SV300,TV380) (35) - HYDRAULIC SYSTEMS
8
4
35.204.02 03
2
home
5
9
3
7
6
1

Артикул

Название

Примечание

Количество

1

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double

2шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

3

84281772

HYD TUBE

Assembly, Hydraulic Coupler

1шт.

4

84281774

HYD TUBE

Assembly, Hydraulic Coupler

1шт.

5

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

2шт.

6

84292314

HOSE,12.7mm ID x 460mm L

Hydraulic Coupler, Drain

1шт.

7

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

2шт.

8

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

25.4mm "J" Insulated 5/16 Bolt

1шт.

9

87752074

SCREW,HWH, M8 x 1.25 x 16mm

M8 X 16

1шт.

Выбрано товаров: 9
