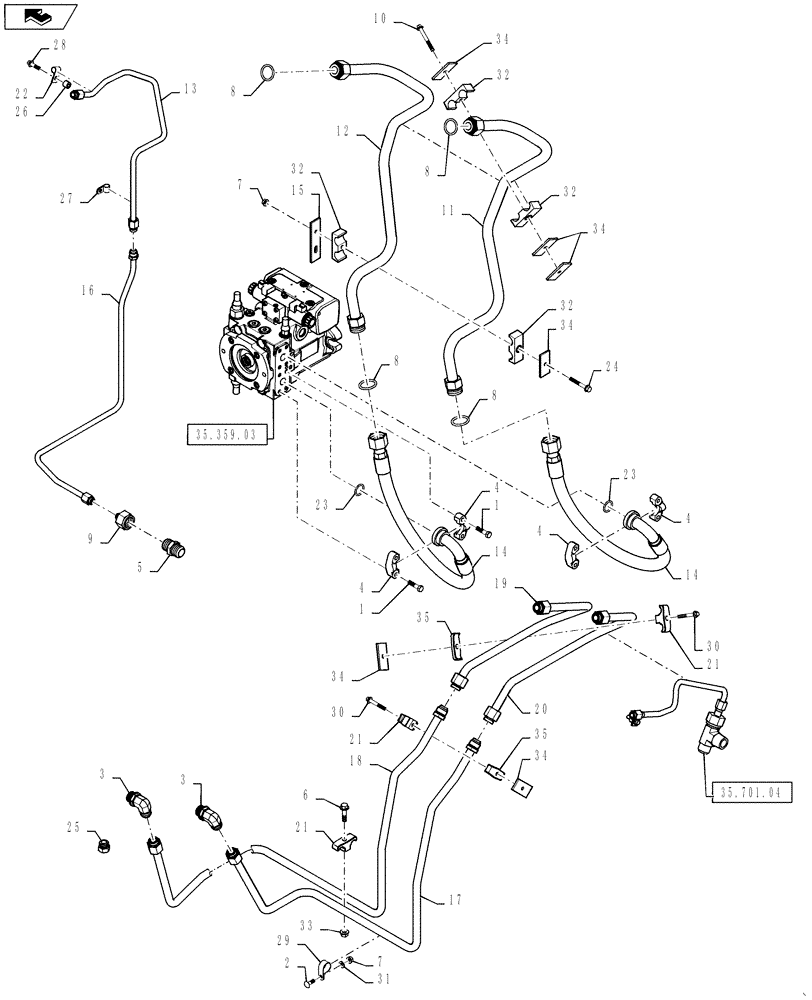

Запчасти Case TV380 (35.734.AH[03]) - 2ND AUX HYD, HIGH FLOW, CHASSIS PLUMBING (SV250,SV300,TV380) (35) - HYDRAULIC SYSTEMS

1

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

2

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

3

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

4

727077

HALF-FLANGE

Clamp

4шт.

5

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

6

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

9

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

Adapter

1шт.

10

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

M8 X 70

1шт.

11

84523269

TUBE

Enhanced High Flow Aux, LH Tower

1шт.

12

84523271

TUBE

Enhanced High Flow Aux, LH Tower

1шт.

13

84356484

HYD TUBE

Enhanced High Flow, Case Drain

1шт.

14

84523266

HOSE ASSY.,19.05mm ID x 745mm L, SAE 100R13

Enhanced High Flow Aux, Pump

2шт.

15

84523993

BRACKET

Enhanced High Flow Aux, Clamp

1шт.

16

84356598

HYD TUBE

Enhanced High Flow, Case Drain Chassis

1шт.

17

84377508

TUBE

Aux, Loader Valve To Lift

1шт.

18

84377510

TUBE

Loader Valve To Lift

1шт.

19

84379987

HYD TUBE

Loader Valve To Lift

1шт.

20

84379989

HYD TUBE

Aux, LH Tower

1шт.

21

D124301

CLAMP,3/4" ID

1шт.

22

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

23

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

24

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

25

86512512

PLUG,7/8" - 14 ORB

1шт.

26

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

27

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

28

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

1шт.

29

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

30

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

32

1546028C1

CLAMP,25.4mm ID x 82mm L

Hydraulic Tube

2шт.

33

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

1шт.

34

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Bar, Clamp Top

6шт.

35

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

2шт.
